|Structure:||Horizontal Injection Molding Machine||Usage:||Electric Parts|
|Machine Weight::||37T||Clamping Force::||7800KN|
|Space Between Tie Bar:||980*950mm||Pump Motor Power:||37+30KW|
plastic box making machine,
plastic product manufacturing machinery

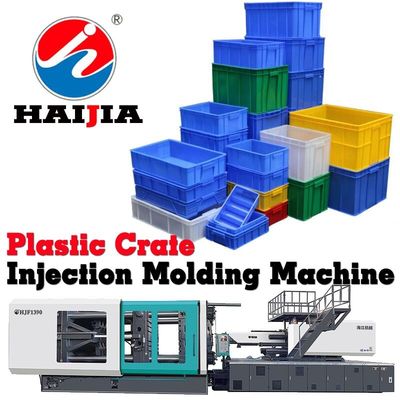

plastic wine crate injection molding machine manufacturers equipment to produce for sale folding mould production line
The machine use the high-performance servo dynamic control system, the oil pump as the power source, having the characteristics as follow: high response,saving energy, low noise, high-control precision, and have the breakthrough in the prefect connection of the electrical servo and hydraulic drive system.
High Energy saving
Under the ideal working state, Power consumption is 40% less than that of variable displacement pump and 70% less than that of fixed displacement pump, save the cost effectively.
Precise control of low pressure & low flow, repeating precision is less than 0.5%. Weight error of the products is 0.4%~0.7%, with semi-close loop system nearly.
Different from ordinary fixed pump injection molding machine, servo power-saving injection molding machine is working only when necessary. And working noise is less than 70dB, will be much quieter for your working area.
The Clamping Parts
The new generation mold locking device and computer emulation optimized parameter makes motions of the moving plate, fixed plate and high rigidity toggle structure, the characteristic of high strength and anti-fatigue is secured. As compared with similar machines, it owns bigger internal spur between tie bars, mold space and mold opening stroke and may process plastic products of bigger size.
The Injection Units
Short and forceful double-cylinder injection system is used to ensure the steady injection motion.The strain free fixed mold plate and screw assembly with optimized design help to reach better plasticing capacity and effect. PID temperature control regulate the speed and pressure of injection, pressure keeping, smelting, back pressure and other motions to ensure the quality of formed products and continuation of production.Auto material preparation, drooling proof,and anti cold start lapse functions ensure the high efficent,simple and safe operations.
|Screw L/D Ration||L/D||23.2||22||19.9||19|
|Space Between Tie Bars||mm||980*950|
|Pump Motor Power||KW||37+30|
|Oil Tank Capacity||L||1500|
