|Structure:||Horizontal Injection Molding Machine||Usage:||Electric Parts|
|Machine Weight::||37T||Clamping Force::||7800KN|
|Space Between Tie Bar:||980*950mm||Pump Motor Power:||37+30KW|
plastic box making machine,
plastic product manufacturing machinery

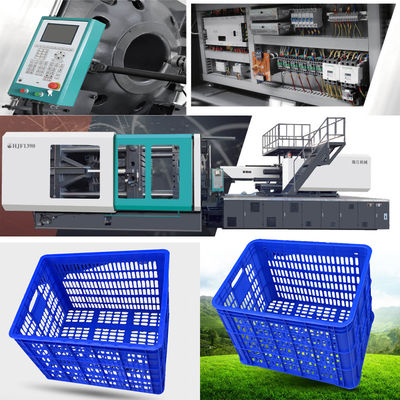

Plastic Fruit basket Injection Molding Machine turnover box Manufacturer for Sale Mould Production Line in China
Servo Machines Features
1. High energy savings
Under normal operating conditions, compared with conventional
hydraulic injection molding machines, energy savings of 20-80%
can be achieved.
2. Molding stability
Compared with conventional injection molding machines repeatability is greatly improved due to servo motor closed-loop control.
3. Quick response
Featuring a dynamic servo motor with a response time of only 0.05sec
4. Quiet operation
The machine runs at much lower noise levels, particularly in low speed applications.
■ Computer Controller PLC
Professional injection moulding machine controller with software and hardware of industrial standard is convenient to expansion and revision of performance.
Adopting double CPU control makes high speed.
Mainly adopting PID control, the control accuracy reaches±1°.
Has the function of network management, improving efficency.
■ The Mould Adjusting Units
The automatic mold adjusting device driven by hydraulic motor adopts gear coupling drive, features steadiness, high-efficiency and saving mold loading time.
The machine use the high-performance servo dynamic control system, the oil pump as the power source, having the characteristics as follow: high response,saving energy, low noise, high-control precision, and have the breakthrough in the prefect connection of the electrical servo and hydraulic drive system.
High Energy saving
Under the ideal working state, Power consumption is 40% less than that of variable displacement pump and 70% less than that of fixed displacement pump, save the cost effectively.
Precise control of low pressure & low flow, repeating precision is less than 0.5%. Weight error of the products is 0.4%~0.7%, with semi-close loop system nearly.
Different from ordinary fixed pump injection molding machine, servo power-saving injection molding machine is working only when necessary. And working noise is less than 70dB, will be much quieter for your working area.
|Screw L/D Ration||L/D||23.2||22||19.9||19|
|Space Between Tie Bars||mm||980*950|
|Pump Motor Power||KW||37+30|
|Oil Tank Capacity||L||1500|
