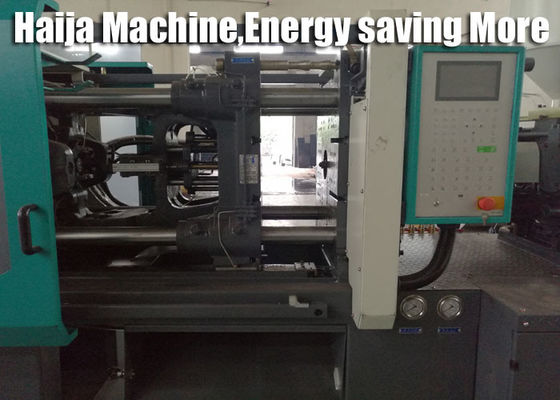

215KN Ningbo Injection Molding Machine , Hybrid Injection Molding Machine Double Cylinder

Minimum Order Quantity : 1 sets Price : Negotiation
Packaging Details : Standard export packing Delivery Time : 30 days
Payment Terms : Western Union, L/C, D/P, T/T Supply Ability : 100 sets per month
Place of Origin: China Brand Name: HAIJIA
Certification: CE ISO9001 Model Number: HJF1100

Detail Information

Shot Size: 95cm3 Injection Weight: 4530 Grams
Injection Pressure: 174Mpa Injection Rate: 720rgams
Ejector Tonnage: 215KN Pump Motor Power: 55+55KW
Heating Power: 59KW Oil Tank Capacity: 2206L
High Light:

thermoset injection molding machine

,

servo motor injection molding machine

Product Description

Double cylinderBakelite injection molding machine screw diameter100 screwl/d ratio23

1) Four stages of injecting, independent velocity and pressure control
2) Hydraulic mould height adjustment device
3) Screw cold-start prevention device
4) Melt decompression control
5) Screw back pressure control
6) Multiple hydraulic ejection

Hihg corrosion resistance:it is suitable forplaces such as specimen and baffle plate of various projects.
flame resistance preformance:coming up to American UL-94Vo Level.

Heat Resistance performance:No heat crack happens under very high thermal deformation temperature (22-260 degree)



njection Unit                                                               A                              B
Screw Diameter mm                          100                            110
Screw L/D Ratio L/D                            23                              22
Shot Size (Theoretical) cm3                           4160                         5034
Injection Weight (PS) g                           3744                          4530
Injection Rate g/s                            590                            720
Injection Pressure Mpa                            211                            174
Screw Speed rpm                                                               100
Clamping Unit
Clamp Tonnage KN                                                             11000
Toggle Stroke mm                                                              1100
Space Between Tie Bars mm                                                           1170x1100
Max.Mold Height mm                                                               1100
Min.Mold Height mm                                                                500
Ejector Stroke mm                                                                325
Ejector Tonnage KN                                                                 215
Others
Max.Pump Pressure Mpa                                                                 16
Pump Motor Power KW                                                ,             55+55
Heat Power KW                                                                59
Machine Dimension m                                                        12.1x2.64x3.00

High machinery strength:products are strengthened by glass fiber to greatly improve its machinery strength,compared with other thermoset engineering plastics

Color preformance:Any color can be adjusted and produced,no baking finish is used again.It has fresh and real color closing to perfection

Processing preformance: it has stable size shrinkage,high precision smooth and beautiful surface.It can be proecessed by plastic injection Molding Machine,Mold compression molding machine and multi-station plastic injection molding machine
