Semi Automatic Pet Stretch Blow Molding Machine , Plastic Water Bottle Making Machine

Minimum Order Quantity : 1 sets Price : Negotiation
Packaging Details : Standard export package Delivery Time : 25 days
Payment Terms : L/C, D/P, T/T, Western Union Supply Ability : 30 sets per month
Place of Origin: China Brand Name: Haijia
Certification: CE ISO9001 Model Number: HJBL50

Detail Information

Conditions: New Application: Bottle
Blower Quantity: 2 Sets Voltage: 3 Phase 380v 50 HZ
Ater Service: Can Send Engineer To Oversea Warranty: 1 Year
Blow Molding Type: PET Strecth Blow Molding Automatic: Semi Automatic
High Light:

automatic extrusion blow molding machine


pet stretch blow molding machine

Product Description

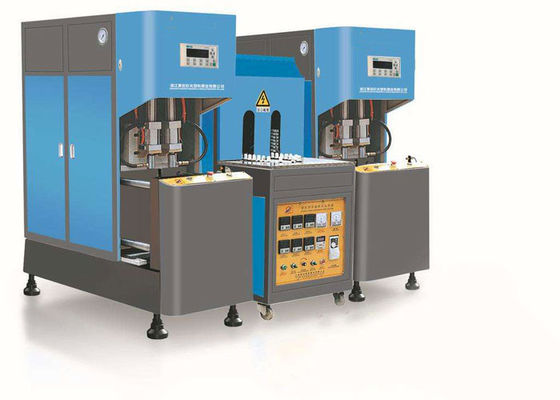

Semi Automatic PET stretch plastic Blow Molding Machine Plastic Water Bottle Making machine


Automatic PET Plastic Bottle Blow Moulding Machine is suitable for blowing PE bottles of various shapes, volume from 3gallon to 6gallon, wide application for blowing mineral water bottles, carbonated water bottles and juice bottles.


1. High Automatization


2. High Intelligence:The machine can be controlled through touch screen and running status is shown on it.


3. High Quanlity:Steady infrared heating system blowing and highly precise blow-mould closing system ensure quality.


4. No Contamination:Closed production zone, good self-lubrication system avoid contamination

5. Low Cost:Low consumption of electricity, air and water.


6. High Transparency:Easy maintenance, absolute safely, visual inspection, low noise.

ITEM                                                              UNIT                   HJBL50
Theoretical Output pcs/hr 1000 500
Max.container volume L 2{2-cavity} 3{1-cavity}
Max.neck diameter mm 90 120
Max.container diameter mm 110 150
Max.container height mm 340
Mould Thickness mm 100-180
Mould Stroke mm 170
Heat Lamp Amount pcs 28
Max.heating power kw 14
Power of Main Blower kw 14.5
Actual power consumption kw 6-8kw
Working Pressure Mpa 0.8
Low pressure consuming Ltr/min 400
Blowing pressure Mpa 3
High pressure consuming Ltr/min 400
Measurement of Main Blower mm 1650*610*1550
Measurement of elevator mm 2180*600*1380
Weight of Main Blower kg 800
