Full Automatic Two Color Injection Molding Machine For PP PS Plastic Chair Making

Full Automatic Two Color Injection Molding Machine For PP PS Plastic Chair Making
Full Automatic Two Color Injection Molding Machine For PP PS Plastic Chair Making Full Automatic Two Color Injection Molding Machine For PP PS Plastic Chair Making Full Automatic Two Color Injection Molding Machine For PP PS Plastic Chair Making Full Automatic Two Color Injection Molding Machine For PP PS Plastic Chair Making

Large Image :  Full Automatic Two Color Injection Molding Machine For PP PS Plastic Chair Making

Product Details:
Place of Origin: china
Brand Name: Haijia
Certification: CE,ISO9001
Model Number: HJF180
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD2000-30000USD per set
Packaging Details: export standard packing
Delivery Time: 20 days
Payment Terms: L/C, D/P, T/T, Western Union
Supply Ability: 300 sets per month

Full Automatic Two Color Injection Molding Machine For PP PS Plastic Chair Making

Description
Style: Horizontal,horizontal Servo Motor Type: Tube Head Injection,Tube Shoulder Injection
Injection Weight: 101-183 Condition: New
Automatic: Yes Plastic Type: Thermoplastic
Space Between Tie Bars: 370*370mm After-sales Service Provided: Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support
Power(w): 6.5kw
High Light:

Plastic Two Color Injection Molding Machine

,

Plastic Chair Injection Molding Making Machine

,

PP Injection Blow Molding Machine

HJF-180 injection molding machine

HAIJIANG Thin Wall Injection Molding Machine and features:

→ bigger space between tie-bars

→ central-clamping structure

→ famous components

→ energy saving with servo motor

→ low noise, fast respons

→ high precision, Stable and super long life

→ T-Slot Platen

→ abundant Spare Parts

→ better price

Clamping Unit:

1. Optimized Platen Design with high rigidity and enlarged space between tie bars

2. Euromap-based Platen Layout with both T-slot & tap holes, locating design in moving platen to better suit various molds

3. New ejection system design with longer ejection stroke, bigger space and better rigidity

4. Hydraulic drivien gear-type mold height adjustion mechanism

5. Relocation of mechanical safety interlock for easier operation

6. linkage structure for front connecting rod increases connectingrod's strength greatly, as well as the whole clamping unit's rigidity & accuracy.

Injection Unit:

1. High Quality Linear Motion Guide ensure the smooth & accuracy of injection process

2. High Speed & Pressure injection structure can improve the injection speed

3. Twin nozzle cylinder ensures more even & stable structure

4. Specilized screw barrel design for various appliance

Hydraulic System:

1. The double proportional compound valve control system pressure & flow, highly sensitive & stable

2. Imported high quality Pump, low in noise, long in lifespan & stable in performance

3. World-famous servo hydraulic system optional, better performance in lower noise & energy saving

4. The precise feedback control of servo system to the pressure & flow, with higher sensitivity & more accurate repeatability precision

5. High performance hydraulic valve, less failure, fast switch, convenient maintenance

6. Low pressure mold protect system, which is more suitable for the precise mould

7. Greese & lubrication oil in dependent lubrication system can lubricate everywhere in the best situation

Electrical System:

1. Control by double CPU, the system HMI use X86 300MHz technical grade display. The system employees a RISC 140MHz microprofessor, with high speed, noise-immunity, fan-less and lower power consumption, independent control structure improve the stablity of control

2. 8.4" display screen with resolution 800*600, user friendly screen & optional choose of language

3. Equiped with USB(2.0) port & ethernet(100-base T) ports

4. 32 Points input & output, entendable and trouble spot can be replaced easily

5. Linder transducer's resolution is 1/65535, more precise in control

6. 120 technological parameters access can be stored & uploaded with an ordinary USB drives

7. Injection End and temperature tracking is curve display, dynamic recorder parameter is modified, dynamic warningis exhibited, all these make the operation more convenient.

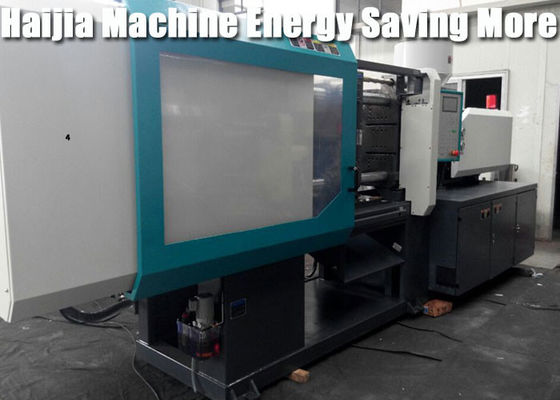

Full Automatic Two Color Injection Molding Machine For PP PS Plastic Chair Making 0

HJF180 tons injection molding machine , Haijiang horizontal standard


Haijiang Machinery Main Configuration

Controller Arcuchi/Porchesion(50-290T)(China)
Techmation(360-3000T)(Taiwan)
Vane pump Albert(USA)
Proportional valve HJK series Northman(TAIWAN)
HJK series Northman(TAIWAN) or TOKIMEC(Japan)
Directional valve HNC(TAIWAN) or YUKEN(Japan)
Electric motor Dongguan(Guangdong)
contactor Mager(50-290T)/Schneider(China)(360-3000T)
High pressure hose Fute(Ningbo)
Five-star hydrauhu Dandun(China)STAFFA(UK)
Air breaker LS(Korea)
Thermal overland relay Schneider(China)
Limit switch Omoron(Japan)
Lubrication pump Automatic
Servo motor SUMITOMO(Japan)
Servo pump DELTA(Taiwan)
Servo sensor ASHCROFT(Germany)


SPARE PARTS(FOR FREE)

1.mold clamping with bolts:8pcs 2.Nozzle:1pc
3.Toolbox:1set 4.heating ring:2pcs
5.lubrication oil:1 bucket 6.limit switch:2pcs
7.hexagon wrench:1set 8.thermocouple:2pcs
9.seal ring:2pcs 10.machine foot pad:6pcs
11.vise:1pc 12.power socket for auxiliary machine:2pcs
13.wrench:1pc 14.screwdriver:2pcs
