Automatic Plastic Injection Molding Machine With Servo Motor

Minimum Order Quantity : 1 set Price : USD5000 -10000USD /set
Packaging Details : Standard Export Package Delivery Time : 15-35 days
Payment Terms : T/T, L/C, Western Union Supply Ability : 50-60 Set/Sets per Month
Place of Origin: NINGBO Brand Name: HAIJIANG BRAND
Certification: CE certificate and ISO9001,SGS Model Number: HJF240Ton

Detail Information

Color: Blue And White Machien Heater Power: 18.5kW
Injection Weight: 514gram Space Between Tie Bar: 530*510
Pump Motor Power: 25kW Screw Diameter: 55mm
Clamp Force: 2400Kn Ejector Stroke: 165mm
Material: PC,PE ,,ABS,PP,PVC ,PA66 Motor: Servo Mortor
Motor Power: 26KW
High Light:

Automatic Injection Molding Machine


Plastic Servo Motor Injection Molding Machine


Servo Motor Horizontal Injection Molding Machine

Product Description

Automatic Plastic Injection Molding Machine With Servo motor

HAIJIANG supply all kinds of injection molding machines from 80T to 3000T, including color chips making machine, energy saving injection molding machine,  bakelite injection molding machine,Fixed pump and variable pump injection molding machine, PVC fitting injection molding machine, So also making the PET preform injection molding machine,  etc.

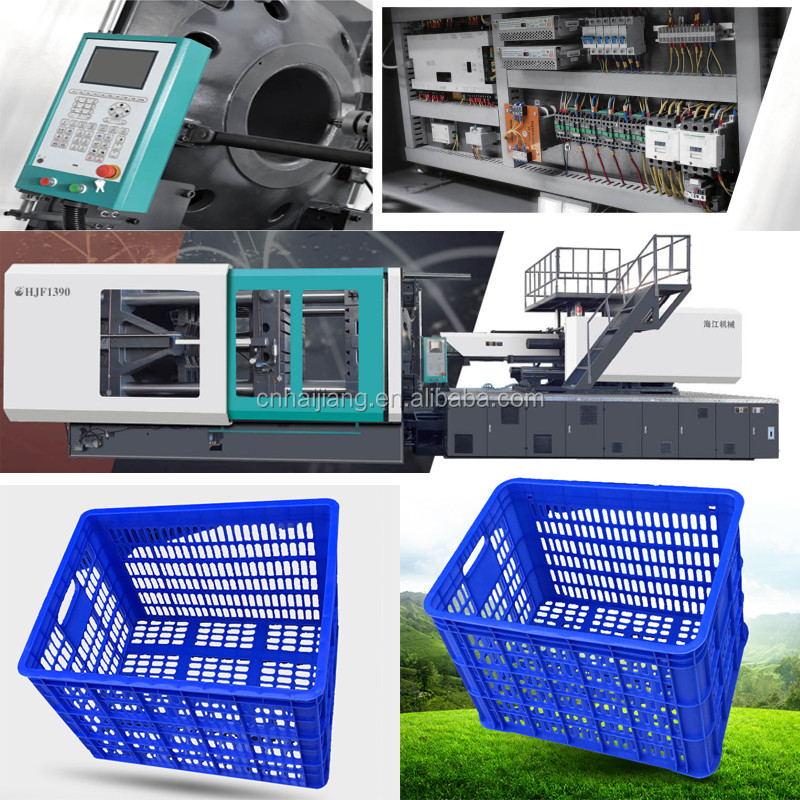

Automatic Plastic  Injection Molding Machine With Servo Motor 0

1. HAIJIANG for injection molding machine features:

→ bigger space between tie-bars

→ central-clamping structure

→ famous components

→ energy saving with servo motor

→ low noise, fast respons

→ high precision, Stable and super long life

T-Slot Platen

abundant Spare Parts

→ better price

Screw Type A B C
Screw Diameter Mm 50 55 60
Screw L/D Ration L/D 22.2 20 18.2
Shot Size(Theoretical) cm3 508 593 706
Injection Weight(PS) g 462 534 642
Injection Rate g/s 148 179 202
Injection Pressure MPa 180 160.8 128
Screw Speed rpm 0~180
Clamping Force KN 2400
Opening stroke mm 490
Space Between Tie Bars mm 530*510
Max.Mold Height mm 530
Min.Mold Height mm 200
Ejector Stroke mm 165
Ejector Tonnage KN 70
Max.Pump Pressure MPa 16
Pump Motor Power KW 18.5
Heater power KW 11.65
Motor power KW 25.1
Machine Dimension(L*W*H) M 5.4*1.5*2
Machine weight T 7
Oil Tank Capacity L 340

Clamping Unit:

1.) Optimized Platen Design with high rigidity and enlarged space between tie bars

2.) Euromap-based Platen Layout with both T-slot & tap holes, locating design in moving platen to better suit various molds

3.) New ejection system design with longer ejection stroke, bigger space and better rigidity

4.) Hydraulic drivien gear-type mold height adjustion mechanism

5.) Relocation of mechanical safety interlock for easier operation

6.) linkage structure for front connecting rod increases connectingrod's strength greatly, as well as the whole clamping unit's rigidity & accuracy.

Injection Unit:

1.) High Quality Linear Motion Guide ensure the smooth & accuracy of injection process

2.) High Speed & Pressure injection structure can improve the injection speed

3.) Twin nozzle cylinder ensures more even & stable structure

4.) Specilized screw barrel design for various appliance

Automatic Plastic  Injection Molding Machine With Servo Motor 1

Servo Controller Part:

1.) High Precise Control The servo system can control the machine's pressure, speed & location precisely, make sure that the error of accurate repeatability precision for the shot measurement is <0.3%

2.) High sensitive response Because the motor vector is matched with the controller accurately, it only takes 0.5sec. inputing the number from 0 to max. Compared with other traditional hydraulic injection molding machine, HJS series is more faster in speed with shorter cycle time and high efficient in production

3.) Low noise Compared with traditional fixed pump & variable pump system, the noise is 1/10 lower under normal circumstance, more suitable for sealed dustless workshop

4.) Energy Saving Overall efficiency is 10% more & driving capacity is 18% more than common machine. This series can save 40-80% energy, and achieve first-class energy efficency

5.) Water cooling saving The system condition prevent high pressure uploading without any power output, leads to the water cooling saving

injection molding machine in workshop:


screw barrel for injection molding machine photos:

Automatic Plastic  Injection Molding Machine With Servo Motor 3

Automatic Plastic  Injection Molding Machine With Servo Motor 4

Automatic Plastic  Injection Molding Machine With Servo Motor 5

Automatic Plastic  Injection Molding Machine With Servo Motor 6

Automatic Plastic  Injection Molding Machine With Servo Motor 7

injection molding machine certification:

Automatic Plastic  Injection Molding Machine With Servo Motor 8

About the Packaging & Delivery:

Packaging Details

1.The main machine is covered by waterproof film firstly, and then fixed on exported wooden pallets with bolts and wires.
2.The electric controlling parts and spare parts are loaded separately in wooden box.
3.The auxiliary equipments are packaged in wooden box as well.
4.All wooden material is fumigation certificated and safe for exporting to all over the world.

Automatic Plastic  Injection Molding Machine With Servo Motor 9

Q1. What is the warranty for the injection molding machine

A1:Total 18 month,Included machine platen,base,injection unit,clamping unit.

Q2:Can you sending engineer to oversea install machine and trainning customer's workers.

A1: Yes,We will send engineer to customer factory install the machine or trainning customer's workers. in one week,total free.
After one week, 50$ per day

Q3:How Many spare parts you will prepare for customer?
A3: Spare parts included: mould clamp, long and short nozzle,heating band,Wrench,Switch,Thermocouple,Operation manual

Tool box,Lubricate Oil,Sealing,Filter etc.

Q4:Computer sytem,Except English, can you change other language,say: French,Spanish,Arabic,Russian.
A1:Yes,when you place order,please tell us the language which you required. Standard one with English,Japanese,Chinese,Korea.

Q5:Can you change the power source for us? Say:we need 3 Phase 220V 60HZ
A5: When you place order,please write clearly.Then we will change the electric system for you.
