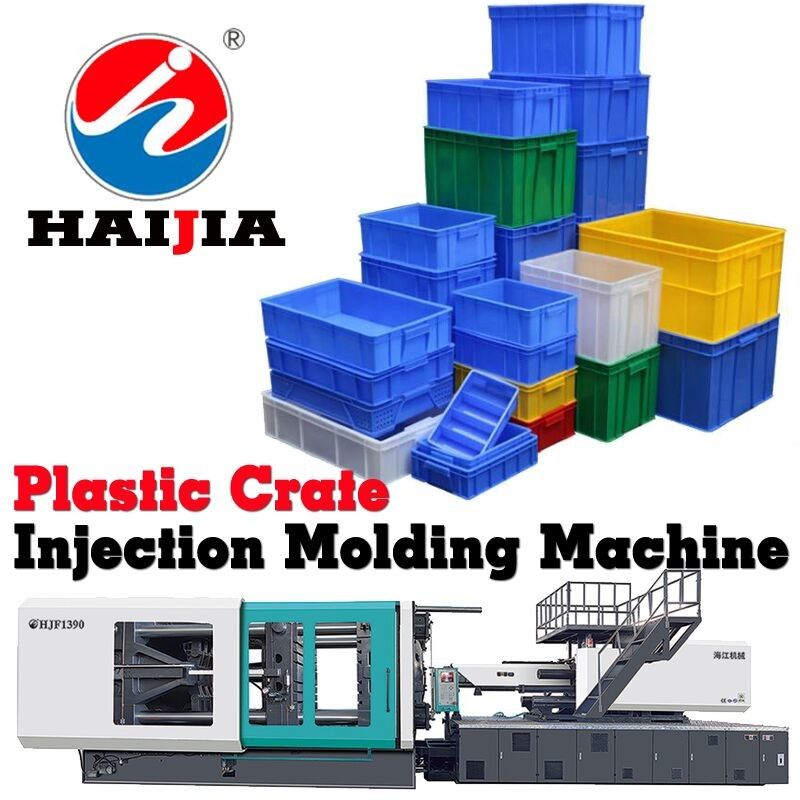

Colorful Industry Plastic Crate Making Machine Screw Type Fruit Egg Crate Mould Manufacturer Good Quality

Product Details:
Place of Origin: CHINA
Brand Name: HAIJIA
Certification: CE ISO9001
Model Number: HJF650
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Export Standard Packing
Delivery Time: 20-30days
Payment Terms: L/C, T/T, D/P, Western Union
Supply Ability: 100 Set/Sets per Month

Detail Information

Structure: Horizontal Plasticizing Way: Screw Type
Plastic Type: Thermoplastic Automation: Automatic
Clamping Force: 6500KN HS Code: 8477101090
Transport Package: Export Standard Packing Cycle Time: 40-60s
Spare Parts: Provided Material: PP Or PE

Product Description

Haijiang Company is a hihg-tech enterprise specialized in manufacturing injection molding machines that mainly covers dozens of speci?cations with injection shot of 45-2,0000g and mold clamping force of 400-15,000KN. Based on the marrow of the trade gained and through years' accumulation, the company has made constant innovation to ensure the machine quality.Parts built into the machines of defferent mold locking forces are all processed under specialized management. HJF series injection molding machines are developed by Haijiang Company on the basis of a collection of the advantages assimilated from all world famous brand machines with optimized design realized by CAD/CAM/CAPP where technical problems such as noise of the entire machine and low energy dissipation are removed and thus the design quality of products is secured. The company adopts advanced equipment and technology and applies scientific management. Besides, it has introduced high-precision full automatic CNC machines fitted with imported electric and hydraulic parts, which have tremendously improved the accuracy and steadiness of the whole machine. Its present products such as HJK and KJF series and widely applied in the electronic, automobile and civil industries.
In order to participate in competition in the world market,the company has clustered a group of high quality technical and managerial personnel with innovative spirit by means of optimized combination fo personnel. The company faces the society and users by acting on the principle of pursuit for frst class and sincere service. We will appreciate friends from all circles who have given their concern and support to Haijiang machines with first class products and first class after service.

Colorful Industry Plastic Crate Making Machine Screw Type Fruit Egg Crate Mould Manufacturer Good Quality 0Colorful Industry Plastic Crate Making Machine Screw Type Fruit Egg Crate Mould Manufacturer Good Quality 1



1. High energy savings
Under normal operating conditions, compared with conventional
hydraulic injection molding machines, energy savings of 20-80%
can be achieved.
2. Molding stability
Compared with conventional injection molding machines repeatability is greatly improved due to servo motor closed-loop control.
3. Quick response
Featuring a dynamic servo motor with a response time of only 0.05sec
4. Quiet operation
The machine runs at much lower noise levels, particularly in low speed applications.
5. Reliable holding pressure
Compared with traditional hydraulic machine the holding pressure is more stable and does not have limitation.



HAIJIANG Thin Wall Injection Molding Machine and features:

→ bigger space between tie-bars

→ central-clamping structure

→ famous components

→ energy saving with servo motor

→ low noise, fast respons

→ high precision, Stable and super long life

T-Slot Platen

abundant Spare Parts

→ better price



Clamping Unit:

1. Optimized Platen Design with high rigidity and enlarged space between tie bars

2. Euromap-based Platen Layout with both T-slot & tap holes, locating design in moving platen to better suit various molds

3. New ejection system design with longer ejection stroke, bigger space and better rigidity

4. Hydraulic drivien gear-type mold height adjustion mechanism

5. Relocation of mechanical safety interlock for easier operation

6. linkage structure for front connecting rod increases connectingrod's strength greatly, as well as the whole clamping unit's rigidity & accuracy.



Injection Unit:

1. High Quality Linear Motion Guide ensure the smooth & accuracy of injection process

2. High Speed & Pressure injection structure can improve the injection speed

3. Twin nozzle cylinder ensures more even & stable structure

4. Specilized screw barrel design for various appliance



SPECIFICATION HJF650
Screw Type A B C D
Screw Diameter mm 90 95 100 105
Screw L/D Ration L/D 20 19 18 17.1
Shot Size(Theoretical) cm³ 2800 3117 3454 3808
Injection Weight(PS) g 2517 2805 3108 3427
Injection Rate g/s 552 612 679 748
Injection Pressure MPa 184 165 149 135
Screw Speed rpm 150
Clamping Force KN 6500
Opening stroke mm 890
Space Between Tie Bars mm 890*890
Max.Mold Height mm 900
Min.Mold Height mm 350
Ejector Stroke mm 250
Ejector Tonnage KN 150
Max.Pump Pressure MPa 16
Pump Motor Power KW 55
Heater power KW 42.95
Machine Dimension(L*W*H) M 10.2*2.24*2.71
Machine weight T 28
Oil Tank Capacity L 1300

Colorful Industry Plastic Crate Making Machine Screw Type Fruit Egg Crate Mould Manufacturer Good Quality 2

Colorful Industry Plastic Crate Making Machine Screw Type Fruit Egg Crate Mould Manufacturer Good Quality 3

Colorful Industry Plastic Crate Making Machine Screw Type Fruit Egg Crate Mould Manufacturer Good Quality 4
