|Place of Origin:||NINGBO|
|Brand Name:||HAIJIANG BRAND|
|Certification:||CE certificate and ISO9001,SGS|
Payment & Shipping Terms:
|Minimum Order Quantity:||1 set|
|Price:||USD /RMB ,5000 USD -8000USD /set|
|Packaging Details:||Standard Export Package|
|Delivery Time:||15-35 days|
|Payment Terms:||T/T, L/C, Western Union|
|Supply Ability:||50-60 Set/Sets per Month|
|Color:||Blue And White||Machien Heater Power:||18.5kW|
|Injection Weight:||514gram||Space Between Tie Bar:||530*510|
|Pump Motor Power:||25kW||Screw Diameter:||55mm|
|Clamp Force:||2400Kn||Ejector Stroke:||165mm|
|Material:||PC,PE ,,ABS,PP,PVC ,PA66||Motor:||Servo Mortor|

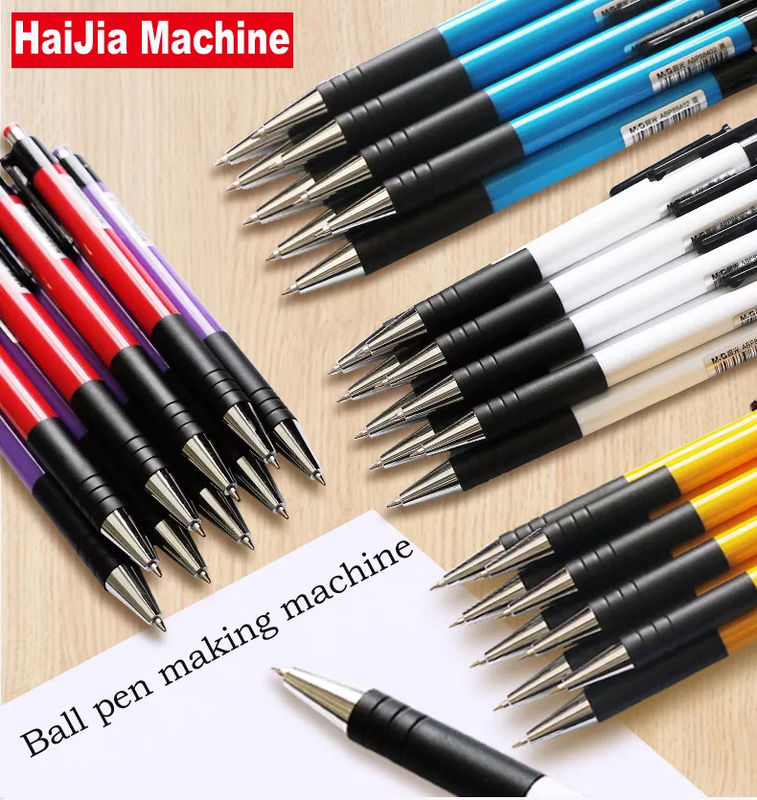

High quality low price automatic ball pen making machine With servo motor
HAIJIANG supply all kinds of injection molding machines from 80T to 3000T, including color chips making machine, energy saving injection molding machine, bakelite injection molding machine,Fixed pump and variable pump injection molding machine, PVC fitting injection molding machine, So also making the PET preform injection molding machine, etc.
1. HAIJIANG for injection molding machine features:
→ bigger space between tie-bars
→ central-clamping structure
→ famous components
→ energy saving with servo motor
→ low noise, fast respons
→ high precision, Stable and super long life
→ T-Slot Platen
→ abundant Spare Parts
→ better price
|Screw L/D Ration||L/D||22.2||20||18.2|
|Space Between Tie Bars||mm||530*510|
|Pump Motor Power||KW||18.5|
|Oil Tank Capacity||L||340|
1.) Optimized Platen Design with high rigidity and enlarged space between tie bars
2.) Euromap-based Platen Layout with both T-slot & tap holes, locating design in moving platen to better suit various molds
3.) New ejection system design with longer ejection stroke, bigger space and better rigidity
4.) Hydraulic drivien gear-type mold height adjustion mechanism
5.) Relocation of mechanical safety interlock for easier operation
6.) linkage structure for front connecting rod increases connectingrod's strength greatly, as well as the whole clamping unit's rigidity & accuracy.
1.) High Quality Linear Motion Guide ensure the smooth & accuracy of injection process
2.) High Speed & Pressure injection structure can improve the injection speed
3.) Twin nozzle cylinder ensures more even & stable structure
4.) Specilized screw barrel design for various appliance
Servo Controller Part:
1.) High Precise Control The servo system can control the machine's pressure, speed & location precisely, make sure that the error of accurate repeatability precision for the shot measurement is <0.3%
2.) High sensitive response Because the motor vector is matched with the controller accurately, it only takes 0.5sec. inputing the number from 0 to max. Compared with other traditional hydraulic injection molding machine, HJS series is more faster in speed with shorter cycle time and high efficient in production
3.) Low noise Compared with traditional fixed pump & variable pump system, the noise is 1/10 lower under normal circumstance, more suitable for sealed dustless workshop
4.) Energy Saving Overall efficiency is 10% more & driving capacity is 18% more than common machine. This series can save 40-80% energy, and achieve first-class energy efficency
5.) Water cooling saving The system condition prevent high pressure uploading without any power output, leads to the water cooling saving
screw barrel for injection molding machine photos:
injection molding machine certification:
About the Packaging & Delivery:
1.The main machine is covered by waterproof film firstly, and then fixed on exported wooden pallets with bolts and wires.
2.The electric controlling parts and spare parts are loaded separately in wooden box.
3.The auxiliary equipments are packaged in wooden box as well.
4.All wooden material is fumigation certificated and safe for exporting to all over the world.
Q1. What is the warranty for the injection molding machine
A1:Total 18 month,Included machine platen,base,injection unit,clamping unit.
Q2:Can you sending engineer to oversea install machine and trainning customer's workers.
A1: Yes,We will send engineer to customer factory install the machine or trainning customer's workers. in one week,total free.
After one week, 50$ per day
Q3:How Many spare parts you will prepare for customer?
A3: Spare parts included: mould clamp, long and short nozzle,heating band,Wrench,Switch,Thermocouple,Operation manual
Tool box,Lubricate Oil,Sealing,Filter etc.
Q4:Computer sytem,Except English, can you change other language,say: French,Spanish,Arabic,Russian.
A1:Yes,when you place order,please tell us the language which you required. Standard one with English,Japanese,Chinese,Korea.
Q5:Can you change the power source for us? Say:we need 3 Phase 220V 60HZ
A5: When you place order,please write clearly.Then we will change the electric system for you.
