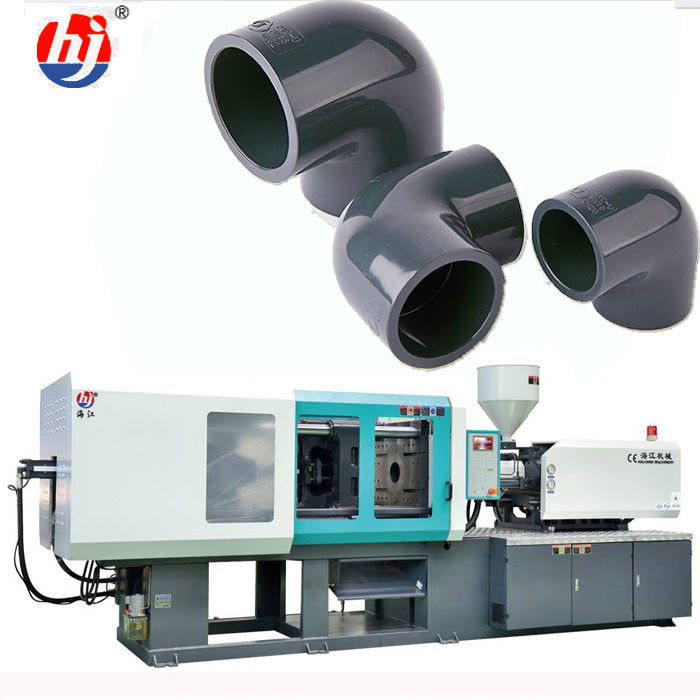

Plastique PVC Energy Saving Injection Molding Machine 200T Clamping

Minimum Order Quantity : 1 Packaging Details : Export Standard packing
Delivery Time : 25 days Payment Terms : L/C, D/P, T/T, Western Union
Supply Ability : 30 sets per month
Place of Origin: China Brand Name: HAIJIA
Certification: ISO9001 CE Model Number: HJF290

Detail Information

Style: Horizontal Servo Motor Injection Weight: 2000g
Condition: New Automatic: Yes
Plastic Type: Thermoplastic After-sales Service Provided: Engineers Available To Service Machinery Overseas
High Light:

Plastique PVC Injection Molding Machine

,

Horizontal Thermoplastic Injection Molding Machine

,

200T Clamping Injection Molding Machine

Product Description

High speed energy saving machine injection plastique PVC PVC fitting machine, clamping force:200-1100T

  1. Adopt the special designed screw & barrel for PVC material, install the air fan for cooling barrel, to avoid the material overheating and coking;
  2. Increased bigger grade oil motor to facilitate PVC raw material plasticizing and molding;
  3. Enlarge the width of clamping unit cover sheet, to suit PVC fitting molds (core puller cylinder) installation convenience;
  4. Supply with special technical solution for PVC injection, not only modify the screw & barrel like others, but also the special solution contains complete hydraulic system and injection unit.
  5. machine injection plastique pvc
  6. SPECIFICATION HJF290
    Screw Type A B C
    Screw Diameter Mm 55 60 65
    Screw L/D Ration L/D 23.1 21 19.3
    Shot Size(Theoretical) cm3 712 847 994.9
    Injection Weight(PS) g 648 779.9 905
    Injection Rate g/s 210 240 270
    Injection Pressure MPa 205 168 143
    Screw Speed rpm 0~180
    Clamping Force KN 2900
    Opening stroke Mm 585
    Space Between Tie Bars mm 600*600
    Max.Mold Height mm 600
    Min.Mold Height mm 220
    Ejector Stroke mm 150
    Ejector Tonnage KN 75
    Max.Pump Pressure MPa 16
    Pump Motor Power KW 30
    Heater power KW 15
    Machine Dimension(L*W*H) M 6.0*1.6*2.1
    Machine weight T 8.5
    Oil Tank Capacity L 570
