High Accurate 240 Tons Plastic Injection Molding Machine For Colorful Bottle Caps

High Accurate 240 Tons Plastic Injection Molding Machine For Colorful Bottle Caps
High Accurate 240 Tons Plastic Injection Molding Machine For Colorful Bottle Caps High Accurate 240 Tons Plastic Injection Molding Machine For Colorful Bottle Caps High Accurate 240 Tons Plastic Injection Molding Machine For Colorful Bottle Caps High Accurate 240 Tons Plastic Injection Molding Machine For Colorful Bottle Caps

Large Image :  High Accurate 240 Tons Plastic Injection Molding Machine For Colorful Bottle Caps

Product Details:
Place of Origin: China (Mainland)
Brand Name: HAIJIA
Certification: CE ISO9001
Model Number: HJF 240
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard Export Package for Injection Machine
Delivery Time: 20-30days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000set/sets per year

High Accurate 240 Tons Plastic Injection Molding Machine For Colorful Bottle Caps

Description
Injection Weight: 534 Injection Rate: 179
Injection Pressure: 160.8 Screw Speed: 0-180
Clamp Tonnage: 2400 Toggle Stroke: 490
High Light:

plastic moulding machine

,

automatic injection moulding machine

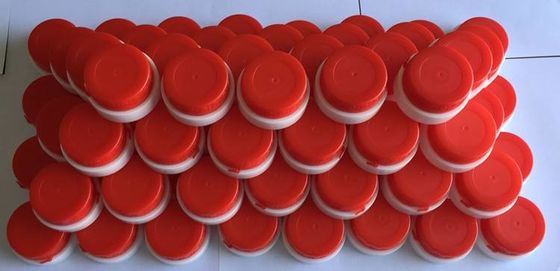

High performance 240t injection molding machine for colorful bottle caps







The Clamping Parts
The new generation mold locking device and computer emulation optimized parameter makes motions of the moving plate, fixed plate and high rigidity toggle structure, the characteristic of high strength and anti-fatigue is secured. As compared with similar machines, it owns bigger internal spur between tie bars, mold space and mold opening stroke and may process plastic products of bigger size.

■ The Injection Units

Short and forceful double-cylinder injection system is used to ensure the steady injection motion.The strain free fixed mold plate and screw assembly with optimized design help to reach better plasticing capacity and effect. PID temperature control regulate the speed and pressure of injection, pressure keeping, smelting, back pressure and other motions to ensure the quality of formed products and continuation of production.Auto material preparation, drooling proof,and anti cold start lapse functions ensure the high efficent,simple and safe operations.

■ The Hydraulic Units
High efficiency, Energy-saving and high precise proportional pressure and flow variable displacement pump system make the out of the hydraulic system matching the required power for entire machine operation without loss of high pressure throttle and overflow energy. As comparedwith constant displacement pump, t saves power by 30%~60%.A motor with same power may be fitted with an oil pump of bigger displacement and thus accelerates the speed of machine.Besides, the low oil temperature will prolong the service life of sealing elements.
Buffer device is used in every mold opening and clamping oil way to ensure steady mold opening and clamping operation without any impact.Besides, differential mold clamping operation is fitted to ensure high production efficiency.



High Accurate 240 Tons Plastic Injection Molding Machine For Colorful Bottle Caps 0



SPECIFICATION HJF240
Screw Type A B C
Screw Diameter Mm 50 55 60
Screw L/D Ration L/D 22.2 20 18.2
Shot Size(Theoretical) cm3 508 593 706
Injection Weight(PS) g 462 534 642
Injection Rate g/s 148 179 202
Injection Pressure MPa 180 160.8 128
Screw Speed rpm 0~180
Clamping Force KN 2400
Opening stroke Mm 490
Space Between Tie Bars mm 530*510
Max.Mold Height mm 530
Min.Mold Height mm 200
Ejector Stroke mm 165
Ejector Tonnage KN 70
Max.Pump Pressure MPa 16
Pump Motor Power KW 18.5
Heater power KW 11.65
Machine Dimension(L*W*H) M 5.4*1.5*2
Machine weight T 7
Oil Tank Capacity L 340
