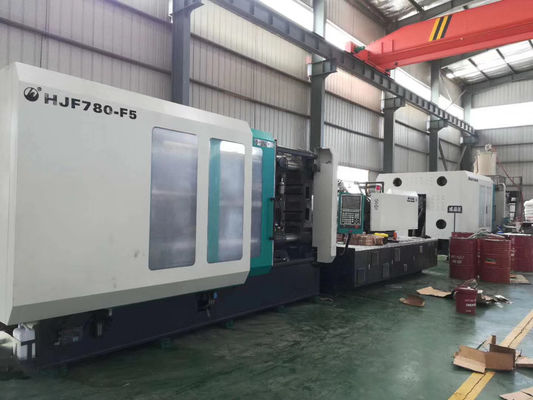

780T Horizontal Style Servo Injection Molding Machine Plastic Beach Chair

Minimum Order Quantity : 1 set Price : USD 5000 USD -10000USD /set
Packaging Details : Standard Export Package Delivery Time : 15-35 days
Payment Terms : T/T, L/C, Western Union Supply Ability : 50-60 Set/Sets per Month
Place of Origin: NINGBO Brand Name: HAIJIANG BRAND
Certification: CE certificate and ISO9001 Model Number: HJF-780T

Detail Information

Color: Blue And White Machien Heater Power: 19.8W
Injection Weight: 4000gram Space Between Tie Bar: 980*980
Pump Motor Power: 35kW Screw Diameter: 75mm
Material: PC,PE ,,ABS,PP,PVC ,PA66 Motor: Servo Motor
High Light:

hydraulic plastic injection moulding machine

,

l&t injection moulding machine

Product Description

780T Horizontal Style Servo Injection Molding Machine Plastic Beach Chair

HAIJIANG supply all kinds of injection molding machines from 80T to 3000T, including color chips making machine, energy saving injection molding machine,  bakelite injection molding machine,Fixed pump and variable pump injection molding machine, PVC fitting injection molding machine, So also making the PET preform injection molding machine,  etc.

780T Horizontal Style Servo Injection Molding Machine Plastic Beach Chair 0
1. HAIJIANG for injection molding machine features:

→ central-clamping structure

→ famous components

→ energy saving with servo motor

→ low noise, fast respons

→ high precision, Stable and super long life

T-Slot Platen

abundant Spare Parts

→ better price

Clamping Unit:

1.) Optimized Platen Design with high rigidity and enlarged space between tie bars

2.) Euromap-based Platen Layout with both T-slot & tap holes, locating design in moving platen to better suit various molds

3.) New ejection system design with longer ejection stroke, bigger space and better rigidity

4.) Hydraulic drivien gear-type mold height adjustion mechanism

5.) Relocation of mechanical safety interlock for easier operation

6.) linkage structure for front connecting rod increases connectingrod's strength greatly, as well as the whole clamping unit's rigidity & accuracy.

Injection Unit:

1.) High Quality Linear Motion Guide ensure the smooth & accuracy of injection process

2.) High Speed & Pressure injection structure can improve the injection speed

3.) Twin nozzle cylinder ensures more even & stable structure

4.) Specilized screw barrel design for various appliance

Technical Parameters and injection molding machine picture

780T Horizontal Style Servo Injection Molding Machine Plastic Beach Chair 1

SPECIFICATION HJF780
Screw Type A B C D
Screw Diameter mm 90 95 105 110
Screw L/D Ration L/D 23.2 22 19.9 19
Shot Size (Theoretical) cm³ 2924 3258 3981 4369
Injection Weight (PS) g 2632 2933 3583 3932
Injection Rate g/s 574 640 781 858
Injection Pressure MPa 195 175 143 130
Screw Speed rpm 115
Clamping Force KN 7800
Opening stroke mm 950
Space Between Tie Bars mm 1010*980
Max.Mold Height mm 960
Min.Mold Height mm 400
Ejector Stroke mm 280
Ejector Tonnage KN 186
Max.Pump Pressure MPa 16
Pump Motor Power KW 37+30
Heater power KW 56.7
Motor Power KW 38.9+38.9
Machine Dimension(L*W*H) M 11.43*2.40*3.14
Machine weight T 37
Oil Tank Capacity L 150

Servo Controller Part:

1.) High Precise Control The servo system can control the machine's pressure, speed & location precisely, make sure that the error of accurate repeatability precision for the shot measurement is <0.3%

2.) High sensitive response Because the motor vector is matched with the controller accurately, it only takes 0.5sec. inputing the number from 0 to max. Compared with other traditional hydraulic injection molding machine, HJS series is more faster in speed with shorter cycle time and high efficient in production

3.) Low noise Compared with traditional fixed pump & variable pump system, the noise is 1/10 lower under normal circumstance, more suitable for sealed dustless workshop

4.) Energy Saving Overall efficiency is 10% more & driving capacity is 18% more than common machine. This series can save 40-80% energy, and achieve first-class energy efficency

5.) Water cooling saving The system condition prevent high pressure uploading without any power output, leads to the water cooling saving

780T Horizontal Style Servo Injection Molding Machine Plastic Beach Chair 2

About the PLC Control for Injection Molding Machine

1.PLC control,the oil motor preplastification,full hydraulic pressure drive ,automatic cycle.

2.High plasticizing capacity,the temperature can be primary automatically controlled.

3.Adopt the digital pulse measurement,when using ,select injection quantity according to the mold requirements of each stage.

4.Adopt the single cylinder quality.the board scissor mol merged mechanism.

5.It has a second pressure injection.

6.The disc inversion is smooth,it is easy to adjust the speed.

7.This machine adopts water cooling method to improve the cooling rate,to ensure product quality.

780T Horizontal Style Servo Injection Molding Machine Plastic Beach Chair 3

About the Packaging & Delivery

Packaging Details

1.The main machine is covered by waterproof film firstly, and then fixed on exported wooden pallets with bolts and wires.
2.The electric controlling parts and spare parts are loaded separately in wooden box.
3.The auxiliary equipments are packaged in wooden box as well.
4.All wooden material is fumigation certificated and safe for exporting to all over the world.

780T Horizontal Style Servo Injection Molding Machine Plastic Beach Chair 4

FAQ


Q1. What is the warranty for the injection molding machine

A1:Total 18 month,Included machine platen,base,injection unit,clamping unit.

Q2:Can you sending engineer to oversea install machine and trainning customer's workers.

A1: Yes,We will send engineer to customer factory install the machine or trainning customer's workers. in one week,total free.
After one week, 50$ per day

Q3:How Many spare parts you will prepare for customer?
A3: Spare parts included: mould clamp, long and short nozzle,heating band,Wrench,Switch,Thermocouple,Operation manual

Tool box,Lubricate Oil,Sealing,Filter etc.

Q4:Computer sytem,Except English, can you change other language,say: French,Spanish,Arabic,Russian.
A1:Yes,when you place order,please tell us the language which you required. Standard one with English,Japanese,Chinese,Korea.

Q5:Can you change the power source for us? Say:we need 3 Phase 220V 60HZ
A5: When you place order,please write clearly.Then we will change the electric system for you.
