Thermoplastic Injection Molding Machines For Make Plastic Labels

Minimum Order Quantity : 1 set Price : Negotiable
Packaging Details : Standard Export Package for Injection Machine Delivery Time : 20-30days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 5000set/sets per year
Place of Origin: China (Mainland) Brand Name: HAIJIA
Certification: CE ISO9001 Model Number: HJF 240

Detail Information

Injection Weight: 534 Clamp Tonnage: 2400
Pump Motor Power: 18.5 Heater Power: 11.65
Machine DImension: 5.4*1.5*2 Machine Weight: 7
High Light:

plastic moulding machine


automatic injection moulding machine

Product Description

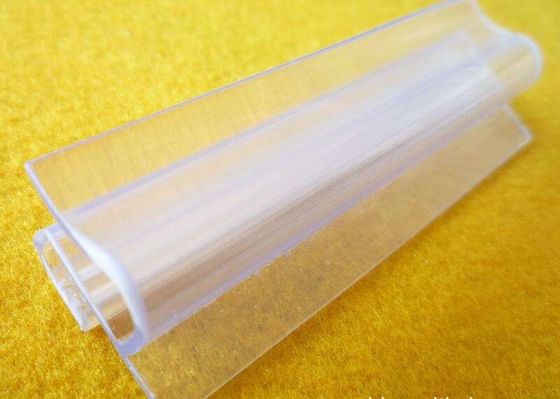

Thermoplastic Injection molding machines are used to make plastic labels




Screw Type A B C
Screw Diameter Mm 50 55 60
Screw L/D Ration L/D 22.2 20 18.2
Shot Size(Theoretical) cm3 508 593 706
Injection Weight(PS) g 462 534 642
Injection Rate g/s 148 179 202
Injection Pressure MPa 180 160.8 128
Screw Speed rpm 0~180
Clamping Force KN 2400
Opening stroke Mm 490
Space Between Tie Bars mm 530*510
Max.Mold Height mm 530
Min.Mold Height mm 200
Ejector Stroke mm 165
Ejector Tonnage KN 70
Max.Pump Pressure MPa 16
Pump Motor Power KW 18.5
Heater power KW 11.65
Machine Dimension(L*W*H) M 5.4*1.5*2
Machine weight T 7
Oil Tank Capacity L 340


Thermoplastic Injection Molding Machines For Make Plastic Labels 0


1. New type screw driving system

Spline connection for screw and oil motor, smooth and reliable transmission, big transfer torque, easy disassembly.
2. Excellent injection performance

Double cylinder injection, entire floor-guided, reliable and stable.
3. Superior clamping system

Adopts optimized connection rod structure, faster and smoother operation.
4. New frame structure

Simple and generous appearance, machine body force reasonable and stronger.
5. Professional plasticizing system

Suitable for different types of plastic raw material with professional plasticizing and heating system, good plasticizing performance.
6. High efficient powerful servo system optional

Power system adopts high pressure gear box and servo motor, rotary encoder,pressure transducer and servo amplifier to get system closed-loop control
