Product Details:
|
| Structure: | Horizontal Injection Molding Machine | Usage: | Electric Parts |
|---|---|---|---|
| Machine Weight:: | 37T | Clamping Force:: | 7800KN |
| Space Between Tie Bar: | 980*950mm | Pump Motor Power: | 37+30KW |
| High Light: | plastic moulding machine,automatic injection moulding machine |
||

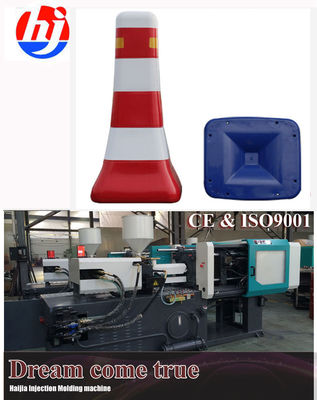

plastic Traffic barrier injection molding machine maker with good mold making line in China
1.CPU controller and display are independent and reliable.
2.A larger color LCD screen enhances clear display and supports multi-language compatibility.
3.The control system also supports remote monitor. In the event of a control problems, the machine can be connected to internet through a special interface. Inject service can realize remote fault diagnosis and maintenance.
4.A screen saver function extends the LCD life.
5.Ultra bright LED is provided for input and output point inspection. Proving convenient indication of the machine’s operation and machine service
6.A data hardware lock is provided to prevent unauthorized people from effecting the machines performance.
7.Closed Loop PID barrel temperature control.
8.Dust and waterproof control cabinets provide a neat and tidy enclosure all electrical control components.
The machine use the high-performance servo dynamic control system, the oil pump as the power source, having the characteristics as follow: high response,saving energy, low noise, high-control precision, and have the breakthrough in the prefect connection of the electrical servo and hydraulic drive system.
High efficiency, Energy-saving and high precise proportional pressure and flow variable displacement pump system make the out of the hydraulic system matching the required power for entire machine operation without loss of high pressure throttle and overflow energy. As comparedwith constant displacement pump, t saves power by 30%~60%.A motor with same power may be fitted with an oil pump of bigger displacement and thus accelerates the speed of machine.Besides, the low oil temperature will prolong the service life of sealing elements.
Buffer device is used in every mold opening and clamping oil way to ensure steady mold opening and clamping operation without any impact.Besides, differential mold clamping operation is fitted to ensure high production efficiency.
| 1. Mold clamping with bolts: 8PCS, | 2. Nozzles: 1PCS, |
| 3. Toolbox: 1SET, | 4. Heating Band: 2PCS, |
| 5. Lubrication Oil: 1 Bucket | 6. Limit Switch: 2PCS, |
| 7. Hexagon Wrench: 1SET, | 8. Thermocouple: 2PCS |
| 9. Seal Ring: 2PCS, | 10. Machine shockproof pads: 6PCS, |
| 11. Vise: 1PCS, | 12. Power socket for auxiliary machines: 2PCS, |
| 13. Wrench: 1PCS, | 14. Screwdriver: 2PCS, |
| SPECIFICATION | HJF650 | ||||
| Screw Type | A | B | C | D | |
| Screw Diameter | Mm | 90 | 95 | 100 | 105 |
| Screw L/D Ration | L/D | 20 | 19 | 18 | 17.1 |
| Shot Size(Theoretical) | cm3 | 2800 | 3117 | 3454 | 3808 |
| Injection Weight(PS) | g | 2517 | 2805 | 3108 | 3427 |
| Injection Rate | g/s | 552 | 612 | 679 | 748 |
| Injection Pressure | MPa | 184 | 165 | 149 | 135 |
| Screw Speed | rpm | 150 | |||
| Clamping Force | KN | 6500 | |||
| Opening stroke | Mm | 890 | |||
| Space Between Tie Bars | mm | 890*890 | |||
| Max.Mold Height | mm | 900 | |||
| Min.Mold Height | mm | 350 | |||
| Ejector Stroke | mm | 250 | |||
| Ejector Tonnage | KN | 150 | |||
| Max.Pump Pressure | MPa | 16 | |||
| Pump Motor Power | KW | 55 | |||
| Heater power | KW | 42.95 | |||
| Machine Dimension(L*W*H) | M | 10.2*2.24*2.71 | |||
| Machine weight | T | 28 | |||
| Oil Tank Capacity | L | 1300 | |||
