|Structure:||Horizontal Injection Molding Machine||Usage:||Electric Parts|
|Machine Weight::||37T||Clamping Force::||7800KN|
|Space Between Tie Bar:||980*950mm||Pump Motor Power:||37+30KW|
Horizontal Syringe Injection Molding Machine,
custom Syringe Injection Molding Machine,

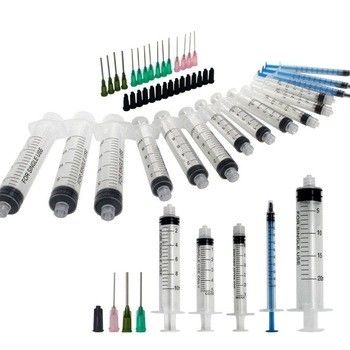

Medical Plastic Syringe Injection Molding Machine
High Energy saving
Under the ideal working state, Power consumption is 40% less than that of variable displacement pump and 70% less than that of fixed displacement pump, save the cost effectively.
Precise control of low pressure & low flow, repeating precision is less than 0.5%. Weight error of the products is 0.4%~0.7%, with semi-close loop system nearly.
With steady capability, servo gearshift dynamical control system has equipped with pressure feedback device with high precision and sensitivity, which forms close-loop precision control, cycle time effectively shortened and improving production efficiency.
Oil temperature rise slowly
The system can restrain arising of oil temperature, so smaller oil cooling system can be used in the machine.
Control pressure and flow simply by inputting simulated voltage of pressure & flow into the computer.
Different from ordinary fixed pump injection molding machine, servo power-saving injection molding machine is working only when necessary. And working noise is less than LOG-A8 series, will be much quieter for your working area.
The Hydraulic Units
High efficiency, Energy-saving and high precise proportional pressure and flow variable displacement pump system make the out of the hydraulic system matching the required power for entire machine operation without loss of high pressure throttle and overflow energy. As comparedwith constant displacement pump, t saves power by 30%~60%.A motor with same power may be fitted with an oil pump of bigger displacement and thus accelerates the speed of machine.Besides, the low oil temperature will prolong the service life of sealing elements.
Buffer device is used in every mold opening and clamping oil way to ensure steady mold opening and clamping operation without any impact.Besides, differential mold clamping operation is fitted to ensure high production efficiency.
|Screw L/D Ration||L/D||23.2||22||19.9||19|
|Space Between Tie Bars||mm||980*950|
|Pump Motor Power||KW||37+30|
|Oil Tank Capacity||L||1500|
