Product Details:
|
| Structure: | Horizontal Injection Molding Machine | Usage: | Electric Parts |
|---|---|---|---|
| Machine Weight:: | 37T | Clamping Force:: | 7800KN |
| Space Between Tie Bar: | 980*950mm | Pump Motor Power: | 37+30KW |
| High Light: | all electric injection molding machines,plastic products making machine |
||

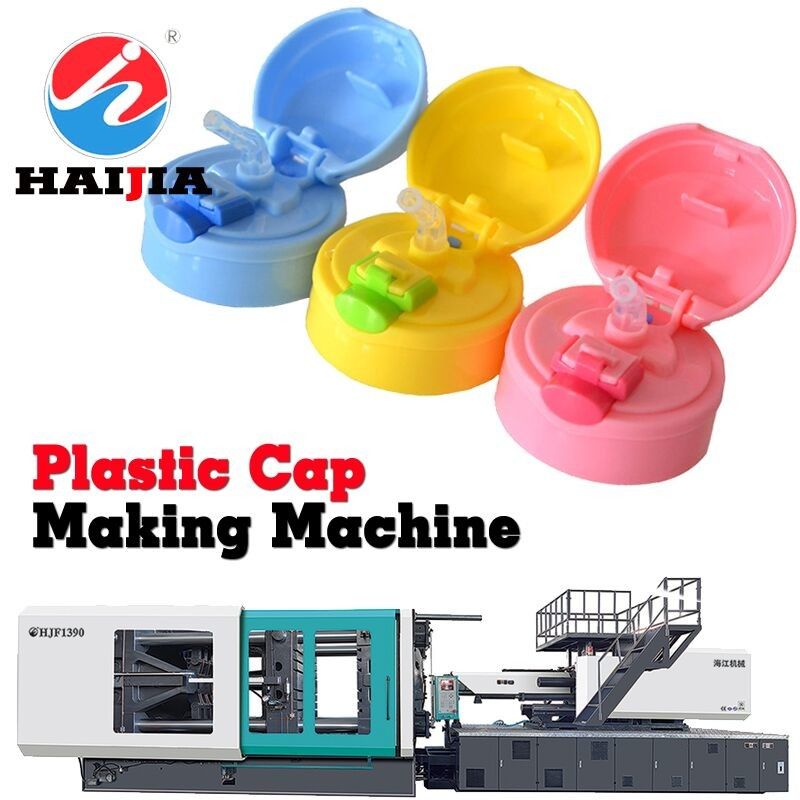

plastic caps made in china injection molding machine 28mm neck making manufacturers for sale mould production line
Due to new toggle design with optimized kinematics.
Take 200-ton clamping unit for example
Vm: Moving speed of movable platen
Vo: Moving speed of oil cylinder
Highly optimized servo-hydraulic technology, with improved efficiency for lower energy consumption.
The technologically matured Jupiter II Series convinces not only with rapid, smooth mold movements and its highly economical energy consumption. The latest upgrade to the Jupiter - called “Plus” - has brought significant additional improvements.
High efficiency, Energy-saving and high precise proportional pressure and flow variable displacement pump system make the out of the hydraulic system matching the required power for entire machine operation without loss of high pressure throttle and overflow energy. As comparedwith constant displacement pump, it saves power by 30%~60%. A motor with same power may be fitted with an oil pump of bigger displacement and thus accelerates the speed of machine.Besides, the low oil temperature will prolong the service life of sealing elements.
Buffer device is used in every mold opening and clamping oil way to ensure steady mold opening and clamping operation without any impact.Besides, differential mold clamping operation is fitted to ensure high production efficiency.
Clamping system: Faster response, steable and high rigidity.
Injection system: Accurate and flexible, lower rejection rate.
Control system: omputer and simple operation,molding data memory system.
Power system: Energy saving, high efficient and precise.
Metal parts: The thickness of our frame, metal plate and wallboard are thicker than other company.
Ceramic heating loop: Uniform heating, better thermal insulation properties so good for production.
Visiable lubrication system: on time clean, avoid cast steel parts abrasion and broken.
Oil treasure: Filter of hydraulic oil, good for pump and valves.
Long working life: Imported spare parts and updated version.
Aftersales service: Professional & timely.
| SPECIFICATION | HJF-780 | ||||
| A | B | C | D | ||
| Screw Diameter | Mm | 90 | 95 | 105 | 110 |
| Screw L/D Ration | L/D | 23.2 | 22 | 19.9 | 19 |
| Shot Size(Theoretical) | cm3 | 2924 | 3258 | 3981 | 4369 |
| Injection Weight(PS) | g | 2632 | 2933 | 3583 | 3932 |
| Injection Rate | g/s | 574 | 640 | 781 | 858 |
| Injection Pressure | MPa | 195 | 175 | 143 | 130 |
| Screw Speed | rpm | 115 | |||
| Clamp tonnage | KN | 7800 | |||
| Opening stroke | Mm | 950 | |||
| Space Between Tie Bars | mm | 980*950 | |||
| Max.Mold Height | mm | 960 | |||
| Min.Mold Height | mm | 400 | |||
| Ejector Stroke | mm | 280 | |||
| Ejector Tonnage | KN | 186 | |||
| Max.Pump Pressure | MPa | 16 | |||
| Pump Motor Power | KW | 37+30 | |||
| Heater power | KW | 56.7 | |||
| Machine Dimension(L*W*H) | M | 11.43*2.40*3.14 | |||
| Machine weight | T | 37 | |||
| Oil Tank Capacity | L | 1500 | |||
