Plunger Type Energy Saving Injection Molding Machine 200T Clamping Force
Contact Person : Michael
Phone Number : 0086-18658255281
WhatsApp : +008618658255281
|Minimum Order Quantity :||1 set||Price :||Negotiation|
|Packaging Details :||Standard Export Package||Delivery Time :||30 days|
|Payment Terms :||L/C, D/P, T/T, Western Union||Supply Ability :||5000pcs per year|
|Place of Origin:||China||Brand Name:||HAIJIA|
|Certification:||CE ISO9001||Model Number:||HJF780|
|Structure:||Horizontal Injection Molding Machine||Usage:||Electric Parts|
|Machine Weight::||37T||Clamping Force::||7800KN|
|Space Between Tie Bar:||980*950mm||Pump Motor Power:||37+30KW|
all electric injection molding machines,
plastic products making machine

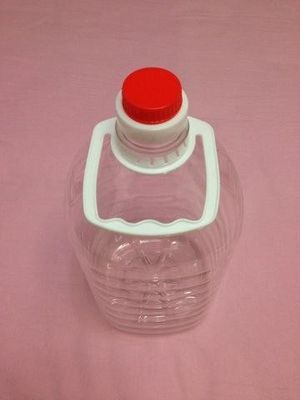

edible oil bottle cap making injection molding machine wooden manufacturers cooking for sale mould sealing production
Some of the important features:
Clamping system: Faster response, steable and high rigidity.
Injection system: Accurate and flexible, lower rejection rate.
Control system: omputer and simple operation,molding data memory system.
Power system: Energy saving, high efficient and precise.
Metal parts: The thickness of our frame, metal plate and wallboard are thicker than other company.
Ceramic heating loop: Uniform heating, better thermal insulation properties so good for production.
The servo system only delivers hydraulic oil as it is needed for the various functions. This prevents unnecessary generation of heat and substantially reduces oil cooling requirements.
Computer Controller PLC
Professional injection moulding machine controller with software and hardware of industrial standard is convenient to expansion and revision of performance.
Adopting double CPU control makes high speed.
Mainly adopting PID control, the control accuracy reaches±1°.
Has the function of network management, improving efficency.
The Mould Adjusting Units
The automatic mold adjusting device driven by hydraulic motor adopts gear coupling drive, features steadiness, high-efficiency and saving mold loading time.
The machine use the high-performance servo dynamic control system, the oil pump as the power source, having the characteristics as follow: high response,saving energy, low noise, high-control precision, and have the breakthrough in the prefect connection of the electrical servo and hydraulic drive system.
High Energy saving
Under the ideal working state, Power consumption is 40% less than that of variable displacement pump and 70% less than that of fixed displacement pump, save the cost effectively.
Precise control of low pressure & low flow, repeating precision is less than 0.5%. Weight error of the products is 0.4%~0.7%, with semi-close loop system nearly.
Different from ordinary fixed pump injection molding machine, servo power-saving injection molding machine is working only when necessary. And working noise is less than 70dB, will be much quieter for your working area.
|Screw L/D Ration||L/D||23.2||22||19.9||19|
|Space Between Tie Bars||mm||980*950|
|Pump Motor Power||KW||37+30|
|Oil Tank Capacity||L||1500|
