|Voltage:||Customed Avaiable||Used For:||Plastic Products|
|Motor:||Servo & Standard & Variable Pump||Keyword:||Energy Saving|
|Warranty:||18 Months||Plastic Type:||Thermoplastic|

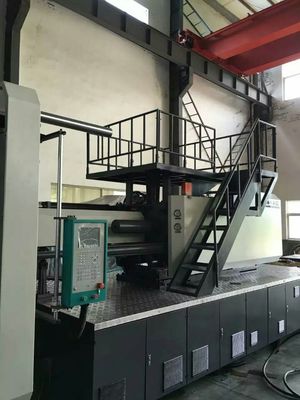

plastic moulding machine,
automatic injection moulding machine
1. Hydraulic closed loop and motor speed closed loop is realized by control system with the features of high repetition, high linearity, high linearity, high efficiency, high precision, fast response, low rejection rate,low noise, low vibration and long service life, High-rigidity template design with T shot andordinary threaded hole facilitates the mold installtion. Oil filter equipment of high performance and high precision can keep the grease within NAS8. Color control system is adopted.
2. Injection Unit Features
2.1 Injection unit adopts duble-cylinder design, more higher injection pressure, more simpler structure and lower malfunction rate.
2.2 Enlarged-cylinder, adopting two -cylinder design,effectively prevent the adhesive-material leaking phenomenon because of the machine vibration or other reasons when the nozzle is under high-speed operation.
2.3 Adopting graphite bush, improving the wear-resistance, reducing the frequency of using lubrication oil effectively improve the cleanness of the injection part.
2.4 Injection cylinder adopts low-frictional seals, improving the response rate and improve the stability under the complicated processes of injection.
2.5 Bridge-style design, for different L/D plastic parts.
|Screw L/D Ration||L/D||22.1||21.6||19.5|
|Space Between Tie Bars||mm||420*420|
|Pump Motor Power||KW||13|
|Oil Tank Capacity||L||230|
Design is one of the most important facets of the production process because it’s the earliest opportunity to prevent expensive mistakes later on. (Of course, determining whether you have a good idea in the first place is also important, but more on that here.) There are many objectives to design for: function, aesthetics, manufacturability, assembly, etc. The right design is one that accomplishes the required objectives to a satisfactory level, but it may take a lot of creativity to get there. Product design is most often accomplished with computer aided design (CAD) software, like SolidWorks. (Click here for nine pro tips on how to best use SolidWorks in design and engineering.) Proficiency with CAD software is vital because it allows for quicker iterations and more accurate prototyping if necessary.
Some specific ways to avoid costly mistakes during the product design process are to plan for uniform wall thickness whenever possible, and to gradually transition from one thickness to another when changes in thickness are not avoidable. It is also important to avoid building stress into the design, such as corners that are 90 degrees or less. (Read more about Injection Molding Defects here.)
A skilled team of design engineers will be able to brainstorm, design, and improve upon a variety of solutions to meet the particular complexities of a specific project. The design team at Creative Mechanisms has combined decades of experience creating elegant solutions to complex problems. Meet some of our team here, here, or here, or visit our Customer Testimonials page to see what previous and current clients have to say about our product design capabilities. We think you’ll be impressed.
Contact Person: Mr. Michael
