Product Details
Place of Origin: Zhejiang ,China
Brand Name: HAIJIA
Certification: CE ISO9001
Model Number: HJF240
Payment & Shipping Terms
Minimum Order Quantity: 1 SET
Price: Negotiation
Packaging Details: Standard Export Package
Delivery Time: 30 days
Payment Terms: L/C, D/P, T/T, Western Union
Supply Ability: 5000pcs per year
Structure: |
Horizontal Injection Molding Machine |
Usage:: |
Electric Parts |
Machine Weight:: |
7T |
Clamping Force:: |
2400KN |
Space Between Tie Bar: |
530*510mm |
Pump Motor Power: |
18.5kw |
Structure: |
Horizontal Injection Molding Machine |
Usage:: |
Electric Parts |
Machine Weight:: |
7T |
Clamping Force:: |
2400KN |
Space Between Tie Bar: |
530*510mm |
Pump Motor Power: |
18.5kw |

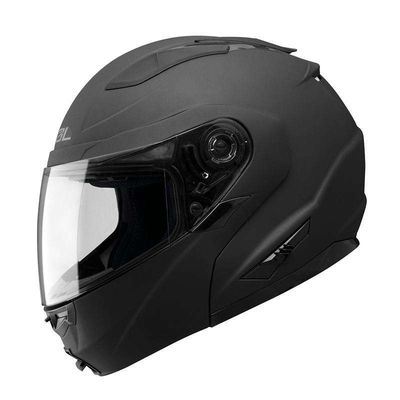

bullet proof helmet production line helmet full face motorcycle arai cycling predator footba injection molding machine
1. High energy savings
Under normal operating conditions, compared with conventional
hydraulic injection molding machines, energy savings of 20-80%
can be achieved.
2. Molding stability
Compared with conventional injection molding machines repeatability is greatly improved due to servo motor closed-loop control.
3. Quick response
Featuring a dynamic servo motor with a response time of only 0.05sec
4. Quiet operation
The machine runs at much lower noise levels, particularly in low speed applications.
5. Reliable holding pressure
Compared with traditional hydraulic machine the holding pressure is more stable and does not have limitation.
16 Better oil temperature stabitily
■ Computer Controller PLC
Professional injection moulding machine controller with software and hardware of industrial standard is convenient to expansion and revision of performance.
Adopting double CPU control makes high speed.
Mainly adopting PID control, the control accuracy reaches±1°.
Has the function of network management, improving efficency.
■ The Mould Adjusting Units
The automatic mold adjusting device driven by hydraulic motor adopts gear coupling drive, features steadiness, high-efficiency and saving mold loading time.
Characteristic
The machine use the high-performance servo dynamic control system, the oil pump as the power source, having the characteristics as follow: high response,saving energy, low noise, high-control precision, and have the breakthrough in the prefect connection of the electrical servo and hydraulic drive system.
High Energy saving
Under the ideal working state, Power consumption is 40% less than that of variable displacement pump and 70% less than that of fixed displacement pump, save the cost effectively.
1.Optimized clamping unit provides lower energy consumption and faster movements for reduced cycle times.
2.The redesigned toggle kinematics for higher efficiency and lower energy consumption for small and large machines.
3.The redesigned clamping unit providing lower platen stress and higher mold force stability, reducing mold wear and improving molded product stability.
6.Due to new toggle design with optimized kinematics.
Take 200-ton clamping unit for example
Vm: Moving speed of movable platen
Vo: Moving speed of oil cylinder
| SPECIFICATION | HJF-240 | |||
| A | B | C | ||
| Screw Diameter | Mm | 50 | 55 | 60 |
| Screw L/D Ration | L/D | 22.2 | 20 | 18.2 |
| Shot Size(Theoretical) | cm3 | 508 | 593 | 706 |
| Injection Weight(PS) | g | 462 | 534 | 642 |
| Injection Rate | g/s | 148 | 179 | 202 |
| Injection Pressure | MPa | 180 | 160.8 | 128 |
| Screw Speed | rpm | 0~180 | ||
| Clamp tonnage | KN | 2400 | ||
| Opening stroke | Mm | 490 | ||
| Space Between Tie Bars | mm | 530*510 | ||
| Max.Mold Height | mm | 530 | ||
| Min.Mold Height | mm | 200 | ||
| Ejector Stroke | mm | 165 | ||
| Ejector Tonnage | KN | 70 | ||
| Max.Pump Pressure | MPa | 16 | ||
| Pump Motor Power | KW | 18.5 | ||
| Heater power | KW | 11.65 | ||
| Machine Dimension(L*W*H) | M | 5.4*1.5*2 | ||
| Machine weight | T | 7 | ||
| Oil Tank Capacity | L | 340 | ||
