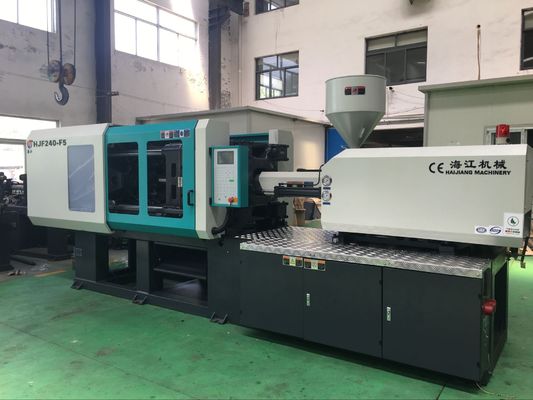

Product Details:
|
Voltage: | Customed Avaiable | Used For: | Plastic Products |
---|---|---|---|
Motor: | Servo & Standard & Variable Pump | Keyword: | Energy Saving |
Warranty: | 18 Months | Plastic Type: | Thermoplastic |
Certification: | CE ISO9001 | ||
High Light: | plastic moulding machine,plastic injection molding equipment |
The Clamping Parts
The new generation mold locking device and computer emulation optimized parameter makes motions of the moving plate, fixed plate and high rigidity toggle structure, the characteristic of high strength and anti-fatigue is secured. As compared with similar machines, it owns bigger internal spur between tie bars, mold space and mold opening stroke and may process plastic products of bigger size.
The Injection Units
Short and forceful double-cylinder injection system is used to ensure the steady injection motion.The strain free fixed mold plate and screw assembly with optimized design help to reach better plasticing capacity and effect. PID temperature control regulate the speed and pressure of injection, pressure keeping, smelting, back pressure and other motions to ensure the quality of formed products and continuation of production.Auto material preparation, drooling proof,and anti cold start lapse functions ensure the high efficent,simple and safe operations.
The Hydraulic Units
High efficiency, Energy-saving and high precise proportional pressure and flow variable displacement pump system make the out of the hydraulic system matching the required power for entire machine operation without loss of high pressure throttle and overflow energy. As comparedwith constant displacement pump, t saves power by 30%~60%.A motor with same power may be fitted with an oil pump of bigger displacement and thus accelerates the speed of machine.Besides, the low oil temperature will prolong the service life of sealing elements.
Buffer device is used in every mold opening and clamping oil way to ensure steady mold opening and clamping operation without any impact.Besides, differential mold clamping operation is fitted to ensure high production efficiency
Characteristic
1.Strengthen locking structure
Optimized special locking system to reach efficient and fast production.
2. Centralized lubrication,reliable protection
Configuring rational centralized lubrication, providing more professional, better lubrication to make machine more cleaner.
3. Professional templates optimized design
Template by advanced finite element analysis software to optimize design, high rigidity, high strength, to meet the rapid impact conditions demand.
4. Powerful, friendly control system
Adopts professional controller and friendly interface, easy and fast operation, with good reliability.
5. New type screw driving system
Spline connection for screw and oil motor, smooth and reliable transmission, big transfer torque, easy disassembly.
6. Excellent injection performance
Double cylinder injection, entire floor-guided, reliable and stable.
7. Superior clamping system
Adopts optimized connection rod structure, faster and smoother operation.
8. New frame structure
Simple and generous appearance, machine body force reasonable and stronger.
9. Professional plasticizing system
Suitable for different types of plastic raw material with professional plasticizing and heating system, good plasticizing performance.
10. High efficient powerful servo system optional
Power system adopts high pressure gear box and servo motor, rotary encoder,pressure transducer and servo amplifier to get system closed-loop control
SPECIFICATION | HJF-140 | |||
A | B | C | ||
Screw Diameter | Mm | 38 | 42 | 45 |
Screw L/D Ration | L/D | 22.1 | 21.6 | 19.5 |
Shot Size(Theoretical) | cm3 | 193 | 227 | 278 |
Injection Weight(PS) | g | 176 | 206 | 252 |
Injection Rate | g/s | 94 | 105 | 135 |
Injection Pressure | MPa | 205 | 159 | 140 |
Screw Speed | rpm | 0~220 | ||
Clamp tonnage | KN | 1400 | ||
Opening stroke | mm | 380 | ||
Space Between Tie Bars | mm | 420*420 | ||
Max.Mold Height | mm | 450 | ||
Min.Mold Height | mm | 170 | ||
Ejector Stroke | mm | 120 | ||
Ejector Tonnage | KN | 33 | ||
Max.Pump Pressure | MPa | 16 | ||
Pump Motor Power | KW | 13 | ||
Heater power | KW | 7.2 | ||
Machine Dimension(L*W*H) | M | 4.5*1.2*1.7 | ||
Machine weight | T | 4.2 | ||
Oil Tank Capacity | L | 230 |
12.The Hydraulic Units
High efficiency, Energy-saving and high precise proportional pressure and flow variable displacement pump system make the out of the hydraulic system matching the required power for entire machine operation without loss of high pressure throttle and overflow energy. As comparedwith constant displacement pump, it saves power by 30%~60%. A motor with same power may be fitted with an oil pump of bigger displacement and thus accelerates the speed of machine.Besides, the low oil temperature will prolong the service life of sealing elements.
Buffer device is used in every mold opening and clamping oil way to ensure steady mold opening and clamping operation without any impact.Besides, differential mold clamping operation is fitted to ensure high production efficiency.
13.The Machine Introduction
The machine use the high-performance servo dynamic control system,the oil pump as the power source,having the characteristics as follow:high response,saving energy, low noise, high-control precision, and have the breakthrough in the prefect connection of the electrical servo and hydraulic drive system.
14.Some of the important features:
Clamping system: Faster response, steable and high rigidity.
Injection system: Accurate and flexible, lower rejection rate.
Control system: omputer and simple operation,molding data memory system.
Power system: Energy saving, high efficient and precise.
Metal parts: The thickness of our frame, metal plate and wallboard are thicker than other company.
Ceramic heating loop: Uniform heating, better thermal insulation properties so good for production.
Visiable lubrication system: on time clean, avoid cast steel parts abrasion and broken.
Oil treasure: Filter of hydraulic oil, good for pump and valves.
Long working life: Imported spare parts and updated version.
