High Power Hard Case Plastic Injection Molding Machine 2400KN Clamping Force

High Power Hard Case Plastic Injection Molding Machine 2400KN Clamping Force
High Power Hard Case Plastic Injection Molding Machine 2400KN Clamping Force High Power Hard Case Plastic Injection Molding Machine 2400KN Clamping Force High Power Hard Case Plastic Injection Molding Machine 2400KN Clamping Force High Power Hard Case Plastic Injection Molding Machine 2400KN Clamping Force High Power Hard Case Plastic Injection Molding Machine 2400KN Clamping Force

Large Image :  High Power Hard Case Plastic Injection Molding Machine 2400KN Clamping Force

Product Details:
Place of Origin: Zhejiang ,China
Brand Name: HAIJIA
Certification: CE ISO9001
Model Number: HJF240
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiation
Packaging Details: Standard Export Package
Delivery Time: 30 days
Payment Terms: L/C, D/P, T/T, Western Union
Supply Ability: 5000pcs per year

High Power Hard Case Plastic Injection Molding Machine 2400KN Clamping Force

Description
Structure: Horizontal Injection Molding Machine Usage:: Electric Parts
Machine Weight:: 7T Clamping Force:: 2400KN
Space Between Tie Bar: 530*510mm Pump Motor Power: 18.5kw
High Light:

plastic moulding machine

,

plastic injection molding equipment

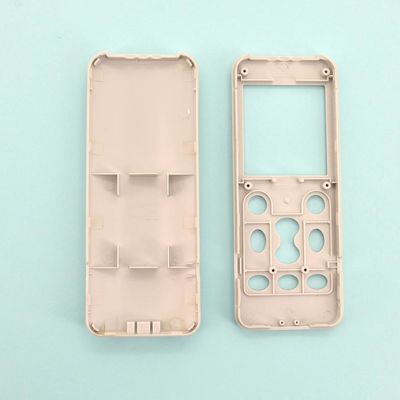

style plastic hard case production line plastic hard shell case making machine small plastic hard case injection molding

Visiable lubrication system: on time clean, avoid cast steel parts abrasion and broken.

Oil treasure: Filter of hydraulic oil, good for pump and valves.

Long working life: Imported spare parts and updated version.

Aftersales service: Professional & timely.



Computer Controller PLC
Professional injection moulding machine controller with software and hardware of industrial standard is convenient to expansion and revision of performance.
Adopting double CPU control makes high speed.
Mainly adopting PID control, the control accuracy reaches±1°.
Has the function of network management, improving efficency.

High Power Hard Case Plastic Injection Molding Machine 2400KN Clamping Force 0

1. High energy savings
Under normal operating conditions, compared with conventional
hydraulic injection molding machines, energy savings of 20-80%
can be achieved.
2. Molding stability
Compared with conventional injection molding machines repeatability is greatly improved due to servo motor closed-loop control.
3. Quick response
Featuring a dynamic servo motor with a response time of only 0.05sec
4. Quiet operation
The machine runs at much lower noise levels, particularly in low speed applications.
5. Reliable holding pressure
Compared with traditional hydraulic machine the holding pressure is more stable and does not have limitation.
16 Better oil temperature stabitily



Characteristic

The machine use the high-performance servo dynamic control system, the oil pump as the power source, having the characteristics as follow: high response,saving energy, low noise, high-control precision, and have the breakthrough in the prefect connection of the electrical servo and hydraulic drive system.

High Energy saving



High precision

Precise control of low pressure & low flow, repeating precision is less than 0.5%. Weight error of the products is 0.4%~0.7%, with semi-close loop system nearly.

Low noise

Different from ordinary fixed pump injection molding machine, servo power-saving injection molding machine is working only when necessary. And working noise is less than 70dB, will be much quieter for your working area.



SPECIFICATION HJF-240
  A B C
Screw Diameter Mm 50 55 60
Screw L/D Ration L/D 22.2 20 18.2
Shot Size(Theoretical) cm3 508 593 706
Injection Weight(PS) g 462 534 642
Injection Rate g/s 148 179 202
Injection Pressure MPa 180 160.8 128
Screw Speed rpm 0~180
Clamp tonnage KN 2400
Opening stroke Mm 490
Space Between Tie Bars mm 530*510
Max.Mold Height mm 530
Min.Mold Height mm 200
Ejector Stroke mm 165
Ejector Tonnage KN 70
Max.Pump Pressure MPa 16
Pump Motor Power KW 18.5
Heater power KW 11.65
Machine Dimension(L*W*H) M 5.4*1.5*2
Machine weight T 7
Oil Tank Capacity L 340
