Horizontal Plastic Bucket Making Machine 18.5kw 2400KN Clamping Force

Minimum Order Quantity : 1 SET Price : Negotiation
Packaging Details : Standard Export Package Delivery Time : 30 days
Payment Terms : L/C, D/P, T/T, Western Union Supply Ability : 5000pcs per year
Place of Origin: Zhejiang ,China Brand Name: HAIJIA
Certification: CE ISO9001 Model Number: HJF240

Detail Information

Structure: Horizontal Injection Molding Machine Usage:: Electric Parts
Machine Weight:: 7T Clamping Force:: 2400KN
Space Between Tie Bar: 530*510mm Pump Motor Power: 18.5kw
High Light:

plastic moulding machine

,

plastic injection molding equipment

Product Description

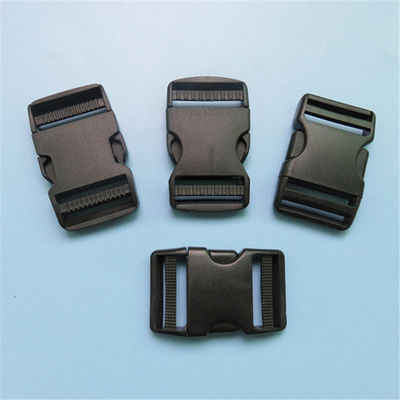

plastic buckle mould design making machine belt with injection manufacturer mens belt molding production line

1. High energy savings
Under normal operating conditions, compared with conventional
hydraulic injection molding machines, energy savings of 20-80%
can be achieved.
2. Molding stability
Compared with conventional injection molding machines repeatability is greatly improved due to servo motor closed-loop control.
3. Quick response
Featuring a dynamic servo motor with a response time of only 0.05sec
4. Quiet operation
The machine runs at much lower noise levels, particularly in low speed applications.
5. Reliable holding pressure
Compared with traditional hydraulic machine the holding pressure is more stable and does not have limitation.

Horizontal Plastic Bucket Making Machine 18.5kw 2400KN Clamping Force 0

15.The servo system only delivers hydraulic oil as it is needed for the various functions. This prevents unnecessary generation of heat and substantially reduces oil cooling requirements.

Servo energy-saving system

Using the servo motor oil esectriciyt composite sturcture, high response, low noile and excellent

electricity -saving performance.



Characteristic

The machine use the high-performance servo dynamic control system, the oil pump as the power source, having the characteristics as follow: high response,saving energy, low noise, high-control precision, and have the breakthrough in the prefect connection of the electrical servo and hydraulic drive system.

High Energy saving

Under the ideal working state, Power consumption is 40% less than that of variable displacement pump and 70% less than that of fixed displacement pump, save the cost effectively.

High precision

Precise control of low pressure & low flow, repeating precision is less than 0.5%. Weight error of the products is 0.4%~0.7%, with semi-close loop system nearly.

Low noise

Different from ordinary fixed pump injection molding machine, servo power-saving injection molding machine is working only when necessary. And working noise is less than 70dB, will be much quieter for your working area.

SPECIFICATION HJF-240
  A B C
Screw Diameter Mm 50 55 60
Screw L/D Ration L/D 22.2 20 18.2
Shot Size(Theoretical) cm3 508 593 706
Injection Weight(PS) g 462 534 642
Injection Rate g/s 148 179 202
Injection Pressure MPa 180 160.8 128
Screw Speed rpm 0~180
Clamp tonnage KN 2400
Opening stroke Mm 490
Space Between Tie Bars mm 530*510
Max.Mold Height mm 530
Min.Mold Height mm 200
Ejector Stroke mm 165
Ejector Tonnage KN 70
Max.Pump Pressure MPa 16
Pump Motor Power KW 18.5
Heater power KW 11.65
Machine Dimension(L*W*H) M 5.4*1.5*2
Machine weight T 7
Oil Tank Capacity L 340
