|Structure:||Horizontal Injection Molding Machine||Usage::||Electric Parts|
|Machine Weight::||7T||Clamping Force::||2400KN|
|Space Between Tie Bar:||530*510mm||Pump Motor Power:||18.5kw|
plastic moulding machine,
automatic injection moulding machine

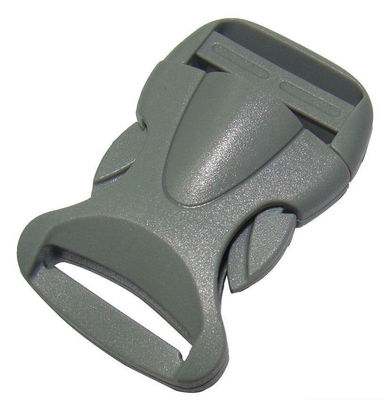

plastic buckle magnetic injection making molding machine plastic buckle for bags injection molding price production line
Optimized clamping unit provides lower energy consumption and faster movements for reduced cycle times.
The redesigned toggle kinematics for higher efficiency and lower energy consumption for small and large machines.
The redesigned clamping unit providing lower platen stress and higher mold force stability, reducing mold wear and improving molded product stability.
Providing better lubrication and lower lubrication consumption. A smooth operation leads to longer lifetime of the clamp. Less maintenance required.
Due to new toggle design with optimized kinematics.
Take 200-ton clamping unit for example
Vm: Moving speed of movable platen
Vo: Moving speed of oil cylinder
Highly optimized servo-hydraulic technology, with improved efficiency for lower energy consumption.
The technologically matured Jupiter II Series convinces not only with rapid, smooth mold movements and its highly economical energy consumption. The latest upgrade to the Jupiter - called “Plus” - has brought significant additional improvements.
FOUR SHORT STROKE MOLD BREAK CYLINDERS
For accurate mold height control with closed loop position feedback, ensures the mold is clamped with parallel movement.
for entire machine operation without loss of high pressure throttle and overflow energy. As comparedwith constant displacement pump, it saves power by 30%~60%. A motor with same power may be fitted with an oil pump of bigger displacement and thus accelerates the speed of machine.Besides, the low oil temperature will prolong the service life of sealing elements.
Buffer device is used in every mold opening and clamping oil way to ensure steady mold opening and clamping operation without any impact.Besides, differential mold clamping operation is fitted to ensure high production efficiency.
Clamping system: Faster response, steable and high rigidity.
Injection system: Accurate and flexible, lower rejection rate.
Control system: omputer and simple operation,molding data memory system.
Power system: Energy saving, high efficient and precise.
Metal parts: The thickness of our frame, metal plate and wallboard are thicker than other company.
Ceramic heating loop: Uniform heating, better thermal insulation properties so good for production.
Visiable lubrication system: on time clean, avoid cast steel parts abrasion and broken.
Oil treasure: Filter of hydraulic oil, good for pump and valves.
Long working life: Imported spare parts and updated version.
Aftersales service: Professional & timely.
|Screw L/D Ration||L/D||22.2||20||18.2|
|Space Between Tie Bars||mm||530*510|
|Pump Motor Power||KW||18.5|
|Oil Tank Capacity||L||340|
