Product Details
Place of Origin: CHINA
Brand Name: HAIJIA
Certification: CE ISO9001
Model Number: HJF360
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Standard Export Package for Injection Machine
Delivery Time: 20-30days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 Set/Sets per Month
Voltage: |
Customed Avaiable |
Used For: |

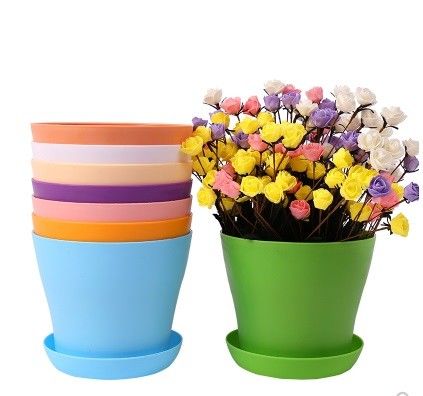

Plasic Products |
Motor: |
Servo & Standard & Variable Pump |
Keyword: |
Energy Saving |
Warranty: |
18 Months |
Plastic Type: |
Thermoplastic |
Certification: |
CE ISO9001 |
Voltage: |
Customed Avaiable |
Used For: |
Plasic Products |
Motor: |
Servo & Standard & Variable Pump |
Keyword: |
Energy Saving |
Warranty: |
18 Months |
Plastic Type: |
Thermoplastic |
Certification: |
CE ISO9001 |
Generally, the molding process of the screw type injection molding machine is: firstly, the granular or powdered plastic is added into the barrel, and the plastic is melted by the rotation of the screw and the outer wall of the barrel, and then the machine performs the mold clamping and the injection seat forward. The nozzle is placed close to the gate of the mold, and then the pressure oil is introduced into the injection cylinder to advance the screw, thereby injecting the melt into the lower temperature closed mold at a high pressure and a relatively high speed. Time and pressure are maintained (also known as holding pressure), cooled, and solidified, and the product can be opened by mold opening (the purpose of holding pressure is to prevent backflow of molten material in the cavity, replenish material into the cavity, and ensure the product Has a certain density and dimensional tolerance). The basic requirements for injection molding are plasticization, injection and molding.
| SPECIFICATION | HJF-180 | |||
| A | B | C | ||
| Screw Diameter | Mm | 42 | 45 | 50 |
| Screw L/D Ration | L/D | 22.5 | 20 | 18.8 |
| Shot Size(Theoretical) | cm3 | 304 | 349 | 431 |
| Injection Weight(PS) | g | 274 | 314 | 388 |
| Injection Rate | g/s | 108 | 128 | 158 |
| Injection Pressure | MPa | 202 | 159 | 140 |
| Screw Speed | rpm | 0~185 | ||
| Clamp tonnage | KN | 1800 | ||
| Opening stroke | Mm | 430 | ||
| Space Between Tie Bars | mm | 470*470 | ||
| Max.Mold Height | mm | 500 | ||
| Min.Mold Height | mm | 180 | ||
| Ejector Stroke | mm | 130 | ||
| Ejector Tonnage | KN | 45 | ||
| Max.Pump Pressure | MPa | 16 | ||
| Pump Motor Power | KW | 15 | ||
| Heater power | KW | 7.5 | ||
| Machine Dimension(L*W*H) | M | 5.1*1.4*1.9 | ||
| Machine weight | T | 5.5 | ||
| Oil Tank Capacity | L |
240
|
||
