CE Plastic Mold Making Machine Small Drawer Storage Boxes Faor Screws

Minimum Order Quantity : 1 set Price : Negotiation
Packaging Details : Standard Export Package for Injection Machine Delivery Time : 20-30days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 100 Set/Sets per Month
Place of Origin: CHINA Brand Name: HAIJIA
Certification: CE ISO9001 Model Number: HJF360

Detail Information

Voltage: Customed Avaiable Used For: Plasic Products
Motor: Servo & Standard & Variable Pump Keyword: Energy Saving
Warranty: 18 Months Plastic Type: Thermoplastic
Certification: CE ISO9001
High Light:

plastic injection molding equipment

,

automatic injection moulding machine

Product Description



According to the power source, the manipulator can be divided into hydraulic, pneumatic and electric. It can also be mixed into three kinds to get a compound driving system according to the need. Material handling needs to adopt a limited point control program to control the robot, hydraulic drive for heavy load, electric drive system for medium load and pneumatic drive system for light load. The multi-purpose pneumatic driving system of stamping robot also has servo driving system. Manipulators for spot welding, arc welding and spraying operations require arbitrary point position and trajectory control functions and servo drive systems.

1.Hydraulic drive has the characteristics of large power, large inertia, fast response and easy to realize direct drive. It is suitable for manipulators working in explosion-proof environment with large carrying capacity.
2. The pneumatic drive has the characteristics of fast speed, simple structure, easy maintenance and low price. It is suitable for small and medium load systems. It is difficult to realize servo control, and most of them are used for programmed manipulators. They are widely used in upper and lower materials and stamping manipulators.
3. Electric drive, with the wide application of low inertia, DC servo motors and supporting servo drivers, this kind of drive system has a large number of choices and plays a role in a wide range.

Selection of driving system scheme for manipulator:
1. The material handling robot is controlled by program with limited point position control, the heavy load is driven by hydraulic pressure, the medium load is driven by electric drive system, and the light load is driven by pneumatic drive system. Multi-purpose pneumatic driving system for punching robot.
2. Manipulators used in spot welding and arc welding and spraying operations require arbitrary point position and trajectory control functions. Servo drive system and hydraulic or electric drive system are required to meet the requirements.



SPECIFICATION HJF-530
  A B C

D

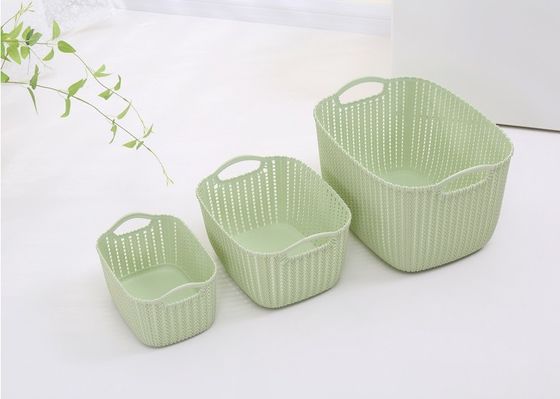

Special fruit basket

Screw Diameter Mm 75 80 85 100
Screw L/D Ration L/D 22.7 21 20 17.5
Shot Size(Theoretical) cm3 1727 1965 2218 2904
Injection Weight(PS) g 1560 1788 2018 2614
Injection Rate g/s 386 442 499 625
Injection Pressure MPa 191 168 148 115
Screw Speed rpm 130
Clamp tonnage KN 5300
Opening stroke Mm 770
Space Between Tie Bars mm 820*800
Max.Mold Height mm 810
Min.Mold Height mm 330
Ejector Stroke mm 240
Ejector Tonnage KN 150
Max.Pump Pressure MPa 16
Pump Motor Power KW 45
Heater power KW 31.4
Machine Dimension(L*W*H) M 8.4*1.92*2.76
Machine weight T 20
Oil Tank Capacity L 900



CE Plastic Mold Making Machine Small Drawer Storage Boxes Faor Screws 0
