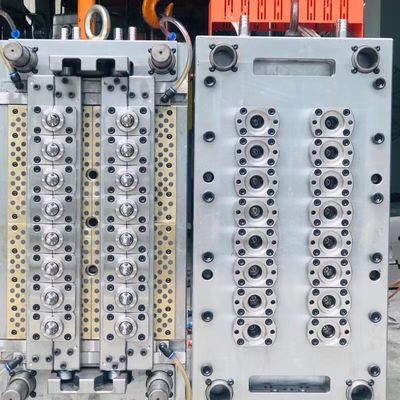

Professional PET Preform Injection Molding Machine For Electric Parts

Minimum Order Quantity : 1 SET Price : Negotiation
Packaging Details : Standard Export Package Delivery Time : 30 days
Payment Terms : L/C, D/P, T/T, Western Union Supply Ability : 5000pcs per year
Place of Origin: Zhejiang ,China Brand Name: HAIJIA
Certification: CE ISO9001 Model Number: HJF240

Detail Information

Structure: Horizontal Injection Molding Machine Usage:: Electric Parts
Machine Weight:: 7T Clamping Force:: 2400KN
Space Between Tie Bar: 530*510mm Pump Motor Power: 18.5kw
High Light:

pet preform making machine

,

pet preform manufacturing machine

Product Description

pet preform injection moulding machine plastic injection company plastic injection molding machine suppliers



The machine use the high-performance servo dynamic control system,the oil pump as the power source,having the characteristics as follow:high response,saving energy, low noise, high-control precision, and have the breakthrough in the prefect connection of the electrical servo and hydraulic drive system.

Clamping system: Faster response, steable and high rigidity.

Injection system: Accurate and flexible, lower rejection rate.

Due to new toggle design with optimized kinematics.

Take 200-ton clamping unit for example
Vm: Moving speed of movable platen
Vo: Moving speed of oil cylinder

The rigid one-piece injection base supports the common slide rail for injection and screw movements.

Highly optimized servo-hydraulic technology, with improved efficiency for lower energy consumption.

The technologically matured Jupiter II Series convinces not only with rapid, smooth mold movements and its highly economical energy consumption. The latest upgrade to the Jupiter - called “Plus” - has brought significant additional improvements.

Control system: omputer and simple operation,molding data memory system.

Power system: Energy saving, high efficient and precise.

Metal parts: The thickness of our frame, metal plate and wallboard are thicker than other company.

Ceramic heating loop: Uniform heating, better thermal insulation properties so good for production.

Visiable lubrication system: on time clean, avoid cast steel parts abrasion and broken.

Oil treasure: Filter of hydraulic oil, good for pump and valves.

Long working life: Imported spare parts and updated version.

Aftersales service: Professional & timely.
Under normal operating conditions, compared with conventional
hydraulic injection molding machines, energy savings of 20-80%
can be achieved.Professional PET Preform Injection Molding Machine For Electric Parts 0

Characteristic

The machine use the high-performance servo dynamic control system, the oil pump as the power source, having the characteristics as follow: high response,saving energy, low noise, high-control precision, and have the breakthrough in the prefect connection of the electrical servo and hydraulic drive system.

SPECIFICATION HJF-240
  A B C
Screw Diameter Mm 50 55 60
Screw L/D Ration L/D 22.2 20 18.2
Shot Size(Theoretical) cm3 508 593 706
Injection Weight(PS) g 462 534 642
Injection Rate g/s 148 179 202
Injection Pressure MPa 180 160.8 128
Screw Speed rpm 0~180
Clamp tonnage KN 2400
Opening stroke Mm 490
Space Between Tie Bars mm 530*510
Max.Mold Height mm 530
Min.Mold Height mm 200
Ejector Stroke mm 165
Ejector Tonnage KN 70
Max.Pump Pressure MPa 16
Pump Motor Power KW 18.5
Heater power KW 11.65
Machine Dimension(L*W*H) M 5.4*1.5*2
Machine weight T 7
Oil Tank Capacity L 340
