59kw Plastic Tray Making Machine , Full Auto Injection Moulding Machines
Contact Person : Michael
Phone Number : 0086-18658255281
WhatsApp : +008618658255281
|Minimum Order Quantity :||1 SET||Price :||Negotiation|
|Packaging Details :||Standard Export Package||Delivery Time :||30 days|
|Payment Terms :||L/C, D/P, T/T, Western Union||Supply Ability :||5000pcs per year|
|Place of Origin:||China||Brand Name:||HAIJIA|
|Certification:||CE ISO9001||Model Number:||HJF140|
|Structure:||Horizontal Injection Molding Machine||Usage::||Electric Parts|
|Machine Weight::||4.2T||Clamping Force::||1400KN|
|Space Between Tie Bar:||420*420mm||Pump Motor Power:||13kw|
toggle injection molding machines,
auto injection moulding machines

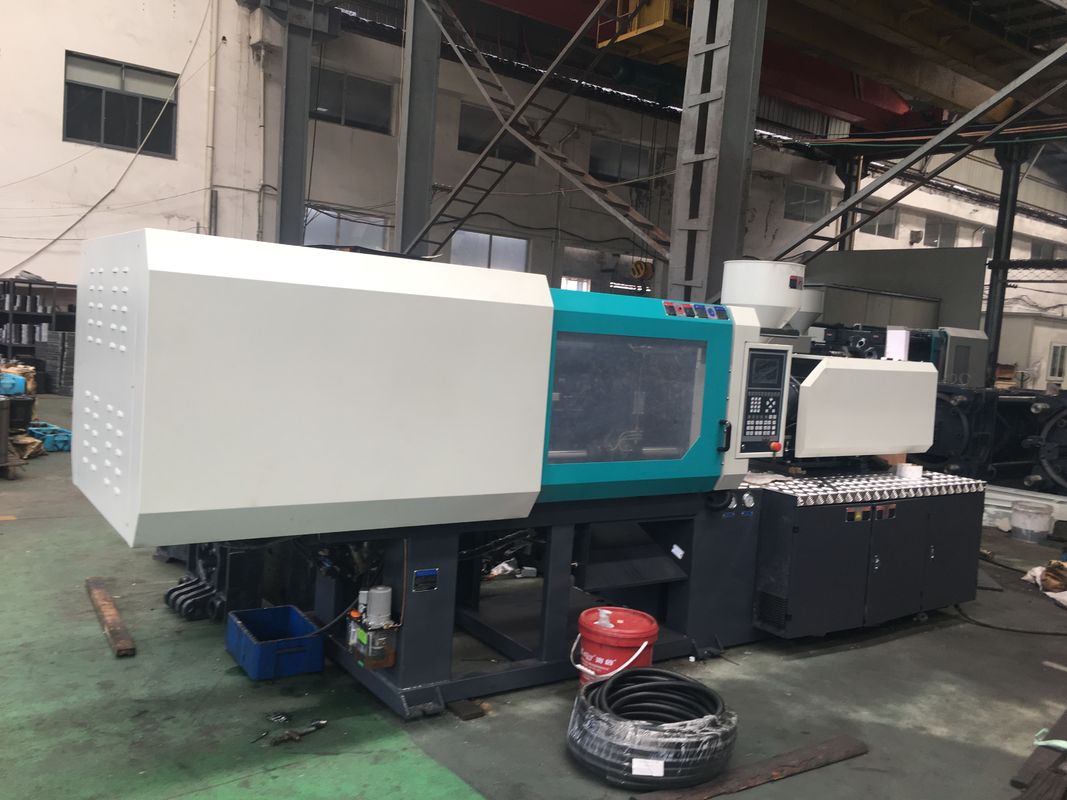

HJF-140injection Molding Machine
Automatic Mold Height Adjustment Saves the time and cost during the mold changing.
The plates were designed using FEM software,ensuring a stable and rigid clamping system.Five point inward moving double toggle system ensures high rigidity and precision for mold clamping and also reducing stress and Strain effects.
The hydraulic system using the world famous pump and control valve can control the machine running precisely,ensuring the precision,reliability and durability of whole machine.
Dual-pillar supporting and dual-cylinder injection balance devices ensure the stress on screw balanced during injection.
Specific screw and barrel designs are available for processing different material requirements.
Electronically Controlled Unit
1.CPU controller and display are independent and reliable.
2.A larger color LCD screen enhances clear display and supports multi-language compatibility.
3.The control system also supports remote monitor.In the event of a control problems,the machine can be connected to internet through a special interface.Inject service can realize remote fault diagnosis and maintenance.
4.A screen saver function extends the LCD life.
5.Ultra bright LED is provided for input and output point inspection.Proving convenient indication of the machine’s operation and machine service
6.A data hardware lock is provided to prevent unauthorized people from effecting the machines performance.
7.Closed Loop PID barrel temperature control.
8.Dust and waterproof control cabinets provide a neat and tidy enclosure all electrical control components.
|Screw L/D Ration||L/D||22.1||21.6||19.5|
|Space Between Tie Bars||mm||420*420|
|Pump Motor Power||KW||13|
|Oil Tank Capacity||L||230|
Double cylinder injection system
High quality barrel and screw
Multi stages of speed, pressure and position for injection
Holding on and charging
Postion or time control changeover
Screw position electronic ruler control
Prevent the screw cold start
Low speed high torque motor
Nozzle center adjust
Stainless steel hopper
Water cooling for hopper throat
Close loop barrel temperature control
Five point double tiggle clamping unit
Electronic ruler for mold open and close position
Mechanical safety device
Multi stage of mold open /close speed, pressure and position
Fast mold close
Automatic mold height adjustment
Low pressure mold protection
Box model platen: T slots
Auto centering lubrication system
Propoffional pressure and speed control
Oil suck filter
Oil temperature control and alarm
By-pass oil filter
Injection unit adopts duble-cylinder design, more higher injection pressure, more simpler structure and lower malfunction rate.
Hydraulic closed loop and motor speed closed loop is realized by control system with the features of high repetition, high linearity, high linearity, high efficiency, high precision, fast response, low rejection rate,low noise, low vibration and long service life, High-rigidity template design with T shot andordinary threaded hole facilitates the mold installtion. Oil filter equipment of high performance and high precision can keep the grease within NAS8. Color control system is adopted.
