Horizontal High Precision Injection Molding Machine Colorful Stretchy And Safe

Product Details

Place of Origin: CHINA

Brand Name: HAIJIA

Certification: CE ISO9001

Model Number: HJF 360

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiation

Packaging Details: Export Standard Packing

Delivery Time: 20-30days

Payment Terms: L/C, T/T, D/P, Western Union

Supply Ability: 100 Set/Sets per Month

Get Best Price
Highlight:

plastic moulding machine

,

automatic injection moulding machine

Plastic Type:
Thermoplastic
Automation:
Automatic
Clamping Force:
3600KN
HS Code:
8477101090
Transport Package:
Export Standard Packing
Structure:
Horizontal
Plasticizing Way:
Screw Type
Plastic Type:
Thermoplastic
Automation:
Automatic
Clamping Force:
3600KN
HS Code:
8477101090
Transport Package:
Export Standard Packing
Structure:
Horizontal
Plasticizing Way:
Screw Type
Horizontal High Precision Injection Molding Machine Colorful Stretchy And Safe

Characteristic

The machine use the high-performance servo dynamic control system, the oil pump as the power source, having the characteristics as follow: high response,saving energy, low noise, high-control precision, and have the breakthrough in the prefect connection of the electrical servo and hydraulic drive system.

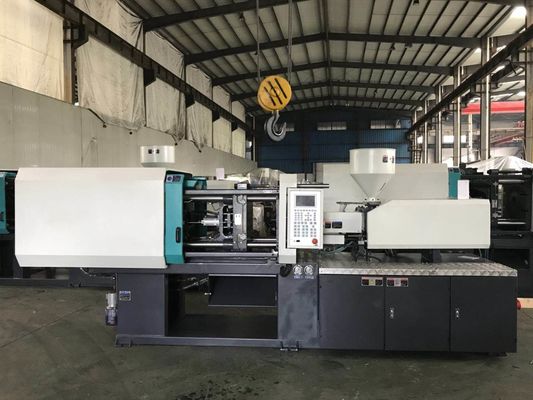

Horizontal High Precision Injection Molding Machine Colorful Stretchy And Safe 0



SPECIFICATION HJF-360
  A B C D
Screw Diameter Mm 60 65 70 75
Screw L/D Ration L/D 22.6 21.2 19.4 18.5
Shot Size(Theoretical) cm3 960 1128 1306 1480
Injection Weight(PS) g 873 1026 1180 1346
Injection Rate g/s 239 275 328 420
Injection Pressure MPa 213 183 160 146
Screw Speed rpm 0~180
Clamp tonnage KN 3600
Opening stroke Mm 700
Space Between Tie Bars mm 680*680
Max.Mold Height mm 670
Min.Mold Height mm 240
Ejector Stroke mm 160
Ejector Tonnage KN 62
Max.Pump Pressure MPa 16
Pump Motor Power KW 37
Heater power KW 17.25
Machine Dimension(L*W*H) M 6.3*1.9*2.4
Machine weight T 12
Oil Tank Capacity L

620
