Automatic Injection Molder Machine Molding Label System For Plastic Bucket IML

Minimum Order Quantity : 1 set Price : Negotiation
Packaging Details : Export Standard Packing Delivery Time : 20-30days
Payment Terms : L/C, T/T, D/P, Western Union Supply Ability : 100 Set/Sets per Month
Place of Origin: CHINA Brand Name: HAIJIA
Certification: CE ISO9001 Model Number: HJF 650

Detail Information
Structure: Horizontal Plasticizing Way: Screw Type
Plastic Type: Thermoplastic Automation: Automatic
Clamping Force: 7800KN HS Code: 8477101090
Transport Package: Export Standard Packing
High Light:

plastic injection molding equipment

,

automatic injection moulding machine

Product Description

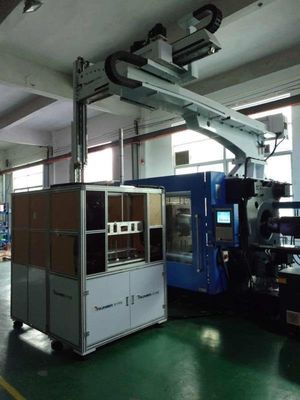

Automatic Injection Molder Machine Molding Label System For Plastic Bucket IML 0



High efficiency, Energy-saving and high precise proportional pressure and flow variable displacement pump system make the out of the hydraulic system matching the required power for entire machine operation without loss of high pressure throttle and overflow energy. As comparedwith constant displacement pump, it saves power by 30%~60%. A motor with same power may be fitted with an oil pump of bigger displacement and thus accelerates the speed of machine.Besides, the low oil temperature will prolong the service life of sealing elements.
Buffer device is used in every mold opening and clamping oil way to ensure steady mold opening and clamping operation without any impact.Besides, differential mold clamping operation is fitted to ensure high production efficiency.



SPECIFICATION HJF-650
  A B C D
Screw Diameter Mm 90 95 100 105
Screw L/D Ration L/D 20 19 18 17.1
Shot Size(Theoretical) cm3 2800 3117 3454 3808
Injection Weight(PS) g 2517 2805 3108 3427
Injection Rate g/s 552 612 679 748
Injection Pressure MPa 184 165 149 135
Screw Speed rpm 150
Clamp tonnage KN 6500
Opening stroke Mm 870
Space Between Tie Bars mm 890*890
Max.Mold Height mm 900
Min.Mold Height mm 350
Ejector Stroke mm 250
Ejector Tonnage KN 150
Max.Pump Pressure MPa 16
Pump Motor Power KW 55
Heater power KW 42.95
Machine Dimension(L*W*H) M 10.2*2.24*2.71
Machine weight T 28
Oil Tank Capacity L 1300
