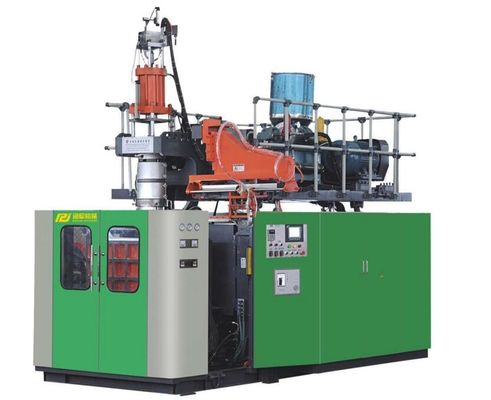

Twin Injection Cylinder Plastic Injection Blow Molding Machine 3.1kw Heat Power

Twin Injection Cylinder Plastic Injection Blow Molding Machine 3.1kw Heat Power
Twin Injection Cylinder Plastic Injection Blow Molding Machine 3.1kw Heat Power

Large Image :  Twin Injection Cylinder Plastic Injection Blow Molding Machine 3.1kw Heat Power

Product Details:
Place of Origin: China
Brand Name: HAIJIA
Certification: CE ISO9001
Model Number: HJF100
Payment & Shipping Terms:
Minimum Order Quantity: 1 sets
Price: Negotiation
Packaging Details: standard export packing
Delivery Time: 30 days
Payment Terms: L/C, D/P, T/T, Western Union
Supply Ability: 100 sets one month

Twin Injection Cylinder Plastic Injection Blow Molding Machine 3.1kw Heat Power

Description
Machine Typehydraulic Type: Toggle Type Clamping Force: 100 KN
Structure: Horizontal Plasticizing Way: Screw
Usage: Houseware Products Space Between Tie Bar: 355mm*315mm
Oil Tank Capacity: 210L Heat Power: 3.1kw
High Light:

plastic injection blow molding machine

,

pet injection blow molding machine

Twin injection cylinder lnjection blow injection molding machine screw L/D 20 shot size 63cm3



 The Characteristic Of HAIJIA Special Machine



1. Fixed platen with centralized force loading and less platen flexing. Redesigned moving platen providing centralized force distribution from the toggle system to the mold. The result: higher rigidity and stability.

2. Providing better lubrication and lower lubrication consumption. A smooth operation leads to longer lifetime of the clamp. Less maintenance required.

3. Due to new toggle design with optimized kinematics.

Take 200-ton clamping unit for example
Vm: Moving speed of movable platen
Vo: Moving speed of oil cylinder

HJF50 High quality hydraulic injection Molding Machine
Injection Unit                                                                        A                      B
Screw Diameter mm                                      28                   32
Screw L/D Ratio L/D                                      20                   17.5
Shot Size (Theoretical) cm3                                      63                    82
Injection Weight (PS) g                                      57                     73
Injection Rate g/s                                      55                     66
Injection Pressure Mpa                                      168                   129
Screw Speed rpm                                                0~175
Clamping Unit
Clamp Tonnage                      KN                                                500KN
Toggle Stroke                        mm                                                 240
Space Between Tie Bars       mm                                              280*260
Max.Mold Height                     mm                                                 300
Min.Mold Height                      mm                                                 140
Ejector Stroke                         mm                                                  55
Ejector Tonnage                     KN                                                  18
Others
Max.Pump Pressure              Mpa                                                  16
Pump Motor Power                KW                                                  5.5
Heat Power                            KW                                                  3.1
Machine Dimension                 m                                            2.6*0.75*1.38
Machine Weight                       t                                                  1.5



hydraulic injection molding machine,hydraulic components of eurpean and american brands with different circuit design ensure locking fast,low nosie,shortent the molding cycle,improve production efficiency
