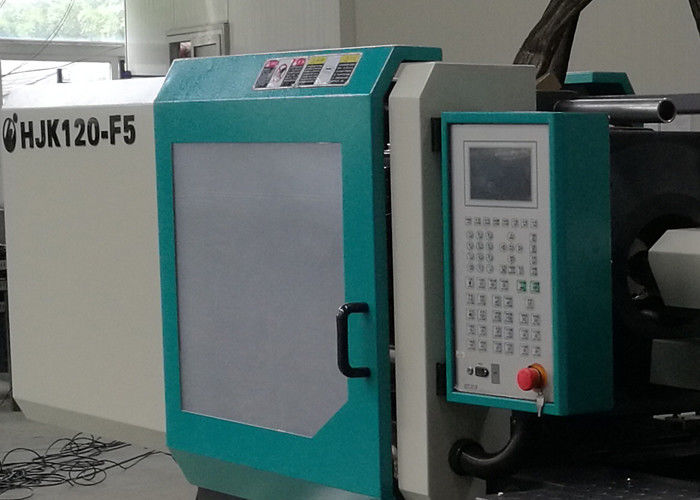

High Efficiency PET Preform Injection Moulding Machine Hydraulic System

High Efficiency PET Preform Injection Moulding Machine Hydraulic System
High Efficiency PET Preform Injection Moulding Machine Hydraulic System

Large Image :  High Efficiency PET Preform Injection Moulding Machine Hydraulic System

Product Details:
Place of Origin: China
Brand Name: HAIJIA
Certification: CE ISO9001
Model Number: HJF780
Payment & Shipping Terms:
Minimum Order Quantity: 1 sets
Price: Negotiation
Packaging Details: standard export packing
Delivery Time: 30 days
Payment Terms: L/C, D/P, T/T, Western Union
Supply Ability: 100 sets one month

High Efficiency PET Preform Injection Moulding Machine Hydraulic System

Description
Machine Typehydraulic Type: Hydraulic Type Clamping Force: 7800 KN
Structure: Horizontal Plasticizing Way: By Screw
Usage: Plastic Basket/crate Space Between Tie Bar: 980mm*950mm
Oil Tank Capacity: 1500L Heat Power: 56.7kw
Highlight:

pet preform making machine

,

pet preform manufacturing machine

High efficiencypet preform injection molding machine between tie bars 980mm*950mm Max.Mold Height 960mm

 The Characteristic Of HAIJIA Special Machine
Characteristic
The machine use the high-performance servo dynamic control system, the oil pump as the power source, having the characteristics as follow: high response,saving energy, low noise, high-control precision, and have the breakthrough in the prefect connection of the electrical servo and hydraulic drive system.
High Energy saving
Under the ideal working state, Power consumption is 40% less than that of variable displacement pump and 70% less than that of fixed displacement pump, save the cost effectively.
The machine use the high-performance servo dynamic control system,the oil pump as the power source,having the characteristics as follow:high response,saving energy, low noise, high-control precision, and have the breakthrough in the prefect connection of the electrical servo and hydraulic drive system.

HJF780 High quality hydraulic injection Molding Machine
Injection Unit                                                                       A                      B
Screw Diameter mm                                    95                     105
Screw L/D Ratio L/D                                    22                      19.9
Shot Size (Theoretical) cm3                                    3188                  3894
Injection Weight (PS) g                                    2901                  3543
Injection Rate g/s                                     640                    781
Injection Pressure Mpa                                     175                     143
Screw Speed rpm                                               115
Clamping Unit
Clamp Tonnage                      KN                                              7800KN
Toggle Stroke                        mm                                                  950
Space Between Tie Bars       mm                                              980*950
Max.Mold Height                     mm                                                   960
Min.Mold Height                      mm                                                   400
Ejector Stroke                         mm                                                   280
Ejector Tonnage                     KN                                                   186
Others
Max.Pump Pressure              Mpa                                                    16
Pump Motor Power                KW                                                  37+30
Heat Power                            KW                                                     56.7
Machine Dimension                 m                                                11.43*2.4*3.14
Machine Weight                       t                                                       37


hydraulic injection molding machine,hydraulic components of eurpean and american brands with different circuit design ensure locking fast,low nosie,shortent the molding cycle,improve production efficiency
