Name: Thermoplastic Plastic Injection Molding Machine For Plastic Storage Containers
Brand: Ningbo haijiang machinery manufacturing co.,Ltd
SKU: HJF200
Price: 120000.00 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: HAIJIA

Certification: CE ISO9001

Model Number: HJF200

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiation

Packaging Details: Standard Export Package for Injection Machine

Delivery Time: 20-30days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 100 set/sets per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                plastic moulding machine, automatic injection moulding machine


Voltage:	Customed Avaiable	Used For:	Plastic Products
Motor:	Servo & Standard & Variable Pump	Keyword:	Energy Saving
Warranty:	18 Months	Plastic Type:	Thermoplastic
Certification:	CE ISO9001

Voltage:	Customed Avaiable
Used For:	Plastic Products
Motor:	Servo & Standard & Variable Pump
Keyword:	Energy Saving
Warranty:	18 Months
Plastic Type:	Thermoplastic
Certification:	CE ISO9001

Thermoplastic Plastic Injection Molding Machine For Plastic Storage Containers

1. Prehardened steel:
Does not last as many cycles as hardened steel, and is less expensive to create.
Aluminum: Most commonly used for single cavity "Prototype Tooling" when a relatively low number of parts are needed for testing. Once the injection molded parts from this tool are tested and approved, then a multi cavity steel production tool is produced. It is possible to get many thousands of parts from an aluminum tool but typically it is used for lower quantities.
Beryllium-Copper alloy: Typically used in areas of the mold that need fast heat removal or where shear heat is concentrated.
Just as with overall product design, mold design is another opportunity to prevent defects during the injection molding process. We have previously written blogs on the Top 10 Injection Molding Defects and Avoiding Mistakes in Injection Molding, but here are some examples of how poor mold design can be a costly mistake:

SPECIFICATION		HJF-140
		A	B	C
Screw Diameter	Mm	38	42	45
Screw L/D Ration	L/D	22.1	21.6	19.5
Shot Size(Theoretical)	cm3	193	227	278
Injection Weight(PS)	g	176	206	252
Injection Rate	g/s	94	105	135
Injection Pressure	MPa	205	159	140
Screw Speed	rpm	0~220
Clamp tonnage	KN	1400
Opening stroke	mm	380
Space Between Tie Bars	mm	*420420**
Max.Mold Height	mm	450
Min.Mold Height	mm	170
Ejector Stroke	mm	120
Ejector Tonnage	KN	33
Max.Pump Pressure	MPa	16
Pump Motor Power	KW	13
Heater power	KW	7.2
Machine Dimension(LWH)	M	*4.51.21.7*
Machine weight	T	4.2
Oil Tank Capacity	L	230

2. Injection Unit Features
2.1 Injection unit adopts duble-cylinder design, more higher injection pressure, more simpler structure and lower malfunction rate.
2.2 Enlarged-cylinder, adopting two -cylinder design,effectively prevent the adhesive-material leaking phenomenon because of the machine vibration or other reasons when the nozzle is under high-speed operation.
2.3 Adopting graphite bush, improving the wear-resistance, reducing the frequency of using lubrication oil effectively improve the cleanness of the injection part.
2.4 Injection cylinder adopts low-frictional seals, improving the response rate and improve the stability under the complicated processes of injection.
2.5 Bridge-style design, for different L/D plastic parts.

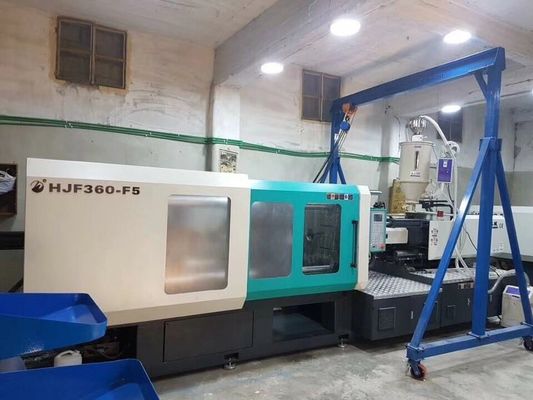

Thermoplastic Plastic Injection Molding Machine For Plastic Storage Containers 0
