High Performance Plastic Injection Molding Machine Energy Saving

Minimum Order Quantity : 1 set Price : Negotiation
Packaging Details : Standard Export Package for Injection Machine Delivery Time : 20-30days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 100 set/sets per month
Place of Origin: CHINA Brand Name: HAIJIA
Certification: CE ISO9001 Model Number: HJF200

Detail Information

Voltage: Customed Avaiable Used For: Plastic Products
Motor: Servo & Standard & Variable Pump Keyword: Energy Saving
Warranty: 18 Months Plastic Type: Thermoplastic
Certification: CE ISO9001
High Light:

plastic moulding machine

,

automatic injection moulding machine

Product Description

Not designing the proper draft: This refers to the angle at which the finished product is ejected from the mold. An insufficient draft can lead to ejection problems, costing significant time and money.

Improperly placed or sized gates: Gates are the openings in a mold through which thermoset or thermoplastic material is injected. Each will leave a vestige (scar), which can create aesthetic or functional problems if not properly placed.

The number of parts (cycles) required, as well as the material they will be made of will help drive decision-making as to how and with what materials to create the mold.

When a product has been properly designed, approved, and die cast, it’s time to start the actual manufacturing! Here are the basics of the injection molding process…



SPECIFICATION HJF-140
  A B C
Screw Diameter Mm 38 42 45
Screw L/D Ration L/D 22.1 21.6 19.5
Shot Size(Theoretical) cm3 193 227 278
Injection Weight(PS) g 176 206 252
Injection Rate g/s 94 105 135
Injection Pressure MPa 205 159 140
Screw Speed rpm 0~220
Clamp tonnage KN 1400
Opening stroke mm 380
Space Between Tie Bars mm 420*420
Max.Mold Height mm 450
Min.Mold Height mm 170
Ejector Stroke mm 120
Ejector Tonnage KN 33
Max.Pump Pressure MPa 16
Pump Motor Power KW 13
Heater power KW 7.2
Machine Dimension(L*W*H) M 4.5*1.2*1.7
Machine weight T 4.2
Oil Tank Capacity L 230



1. Optimized clamping unit provides lower energy consumption and faster movements for reduced cycle times.

2. The redesigned toggle kinematics for higher efficiency and lower energy consumption for small and large machines.



3. The redesigned clamping unit providing lower platen stress and higher mold force stability, reducing mold wear and improving molded product stability.

4. Fixed platen with centralized force loading and less platen flexing. Redesigned moving platen providing centralized force distribution from the toggle system to the mold. The result: higher rigidity and stability.

5. Providing better lubrication and lower lubrication consumption. A smooth operation leads to longer lifetime of the clamp. Less maintenance required.

6. Due to new toggle design with optimized kinematics.

Take 200-ton clamping unit for example

Vm: Moving speed of movable platen

Vo: Moving speed of oil cylinder

7. The rigid one-piece injection base supports the common slide rail for injection and screw movements.

8. Highly optimized servo-hydraulic technology, with improved efficiency for lower energy consumption.

9. The technologically matured Jupiter II Series convinces not only with rapid, smooth mold movements and its highly economical energy consumption. The latest upgrade to the Jupiter - called “Plus” - has brought significant additional improvements.

10. FOUR SHORT STROKE MOLD BREAK CYLINDERS

For accurate mold height control with closed loop position feedback, ensures the mold is clamped with parallel movement.



11. HIGHLY RIGID INJECTION UNIT GUIDANCE

with independent movement of the screw drive support.

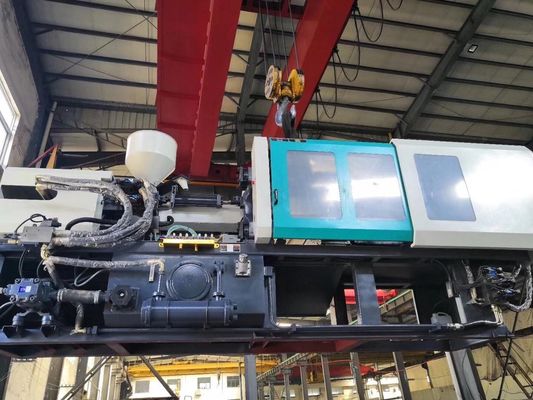

High Performance Plastic Injection Molding Machine Energy Saving 0High Performance Plastic Injection Molding Machine Energy Saving 1High Performance Plastic Injection Molding Machine Energy Saving 2High Performance Plastic Injection Molding Machine Energy Saving 3High Performance Plastic Injection Molding Machine Energy Saving 4
