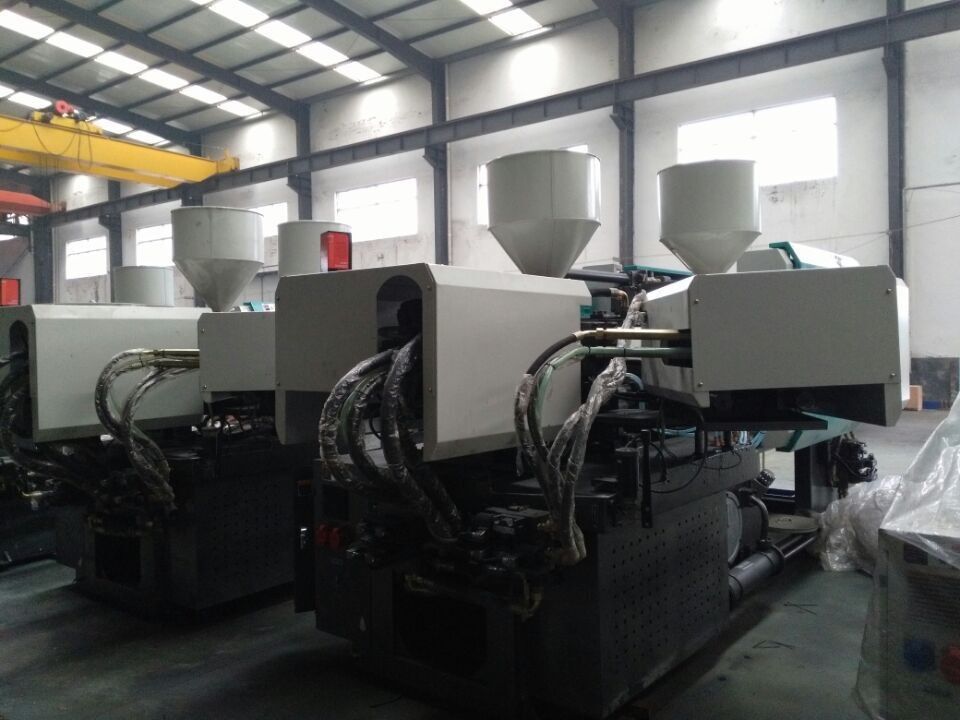

220rpm Injection Molding Machine

Product Details:
Place of Origin: China
Brand Name: HAIJIA
Certification: CE ISO9001
Model Number: HJF180
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiation
Packaging Details: Standard Export Package
Delivery Time: 30 days
Payment Terms: L/C, T/T, D/P, Western Union
Supply Ability: 5000pcs per year

Detail Information

Structure: Horizontal Injection Molding Machine Usage:: Electric Parts
Machine Weight:: 5.5T Clamping Force:: 1800KN
Space Between Tie Bar: 470mm*470mm Pump Motor Power: 15KW
High Light:

220rpm Injection Molding Machine


1800KN Injection Molding Machine


15KW Injection Molding Machine

Product Description

1.The redesigned clamping unit providing lower platen stress and higher mold force stability, reducing mold wear and improving molded product stability.

2.Due to new toggle design with optimized kinematics.

Take 200-ton clamping unit for example
Vm: Moving speed of movable platen
Vo: Moving speed of oil cylinder

3.Highly optimized servo-hydraulic technology, with improved efficiency for lower energy consumption.

4.The technologically matured Jupiter II Series convinces not only with rapid, smooth mold movements and its highly economical energy consumption. The latest upgrade to the Jupiter - called “Plus” - has brought significant additional improvements.220rpm Injection Molding Machine 0

5.The machine use the high-performance servo dynamic control system,the oil pump as the power source,having the characteristics as follow:high response,saving energy, low noise, high-control precision, and have the breakthrough in the prefect connection of the electrical servo and hydraulic drive system.


Clamping system: Faster response, steable and high rigidity.

Injection system: Accurate and flexible, lower rejection rate.

Control system: omputer and simple operation,molding data memory system.

Power system: Energy saving, high efficient and precise.

Metal parts: The thickness of our frame, metal plate and wallboard are thicker than other company.

Ceramic heating loop: Uniform heating, better thermal insulation properties so good for production.

Visiable lubrication system: on time clean, avoid cast steel parts abrasion and broken.

Oil treasure: Filter of hydraulic oil, good for pump and valves.

Long working life: Imported spare parts and updated version.

Aftersales service: Professional & timely.

220rpm Injection Molding Machine 1

■ Computer Controller PLC
Professional injection moulding machine controller with software and hardware of industrial standard is convenient to expansion and revision of performance.
Adopting double CPU control makes high speed.
Mainly adopting PID control, the control accuracy reaches±1°.
Has the function of network management, improving efficency.

■ The Mould Adjusting Units
The automatic mold adjusting device driven by hydraulic motor adopts gear coupling drive, features steadiness, high-efficiency and saving mold loading time.

  A B C
Screw Diameter Mm 35 38 40
Screw L/D Ration L/D 23.9 22 20.9
Shot Size(Theoretical) cm3 154 181 201
Injection Weight(PS) g 141 165 183
Injection Rate g/s 80 95 105
Injection Pressure MPa 219 186 167
Screw Speed rpm 0~220
Clamp tonnage KN 1180
Opening stroke mm 340
Space Between Tie Bars mm 370*370
Max.Mold Height mm 400
Min.Mold Height mm 150
Ejector Stroke mm 100
Ejector Tonnage KN 33
Max.Pump Pressure MPa 16
Pump Motor Power KW 11
Heater power KW 6.5
Machine Dimension(L*W*H) M 4.2*1.25*1.8
Machine weight T 3.5
Oil Tank Capacity L 210
