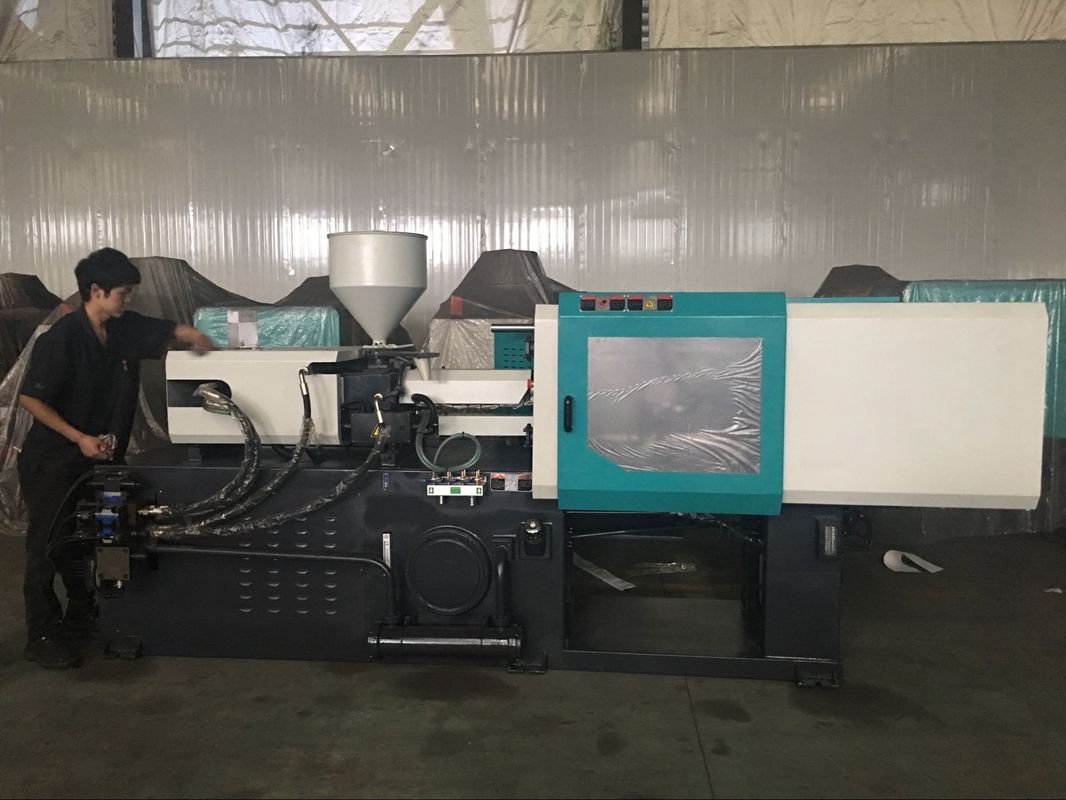

11KW Injection Molding Machine

11KW Injection Molding Machine
11KW Injection Molding Machine 11KW Injection Molding Machine

Large Image :  11KW Injection Molding Machine

Product Details:
Place of Origin: China
Brand Name: HAIJIA
Certification: CE ISO9001
Model Number: HJF118
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiation
Packaging Details: Standard
Delivery Time: 30 days
Payment Terms: L/C, T/T, D/P, Western Union
Supply Ability: 5000pcs per year

11KW Injection Molding Machine

Structure: Horizontal Injection Molding Machine Usage:: Electric Parts
Machine Weight:: 3.5T Clamping Force:: 1180KN
Space Between Tie Bar: 370mm*370mm Pump Motor Power: 11KW
High Light:

11KW Injection Molding Machine


1180KN Injection Molding Machine


PLC 220rpm Injection Molding Machine


High efficiency, Energy-saving and high precise proportional pressure and flow variable displacement pump system make the out of the hydraulic system matching the required power for entire machine operation without loss of high pressure throttle and overflow energy. As comparedwith constant displacement pump, it saves power by 30%~60%. A motor with same power may be fitted with an oil pump of bigger displacement and thus accelerates the speed of machine.Besides, the low oil temperature will prolong the service life of sealing elements.
Buffer device is used in every mold opening and clamping oil way to ensure steady mold opening and clamping operation without any impact.Besides, differential mold clamping operation is fitted to ensure high production efficiency.

■ Computer Controller PLC
Professional injection moulding machine controller with software and hardware of industrial standard is convenient to expansion and revision of performance.
Adopting double CPU control makes high speed.
Mainly adopting PID control, the control accuracy reaches±1°.
Has the function of network management, improving efficency.
■ The Mould Adjusting Units
The automatic mold adjusting device driven by hydraulic motor adopts gear coupling drive, features steadiness, high-efficiency and saving mold loading time.

  A B C
Screw Diameter Mm 35 38 40
Screw L/D Ration L/D 23.9 22 20.9
Shot Size(Theoretical) cm3 154 181 201
Injection Weight(PS) g 141 165 183
Injection Rate g/s 80 95 105
Injection Pressure MPa 219 186 167
Screw Speed rpm 0~220
Clamp tonnage KN 1180
Opening stroke mm 340
Space Between Tie Bars mm 370*370
Max.Mold Height mm 400
Min.Mold Height mm 150
Ejector Stroke mm 100
Ejector Tonnage KN 33
Max.Pump Pressure MPa 16
Pump Motor Power KW 11
Heater power KW 6.5
Machine Dimension(L*W*H) M 4.2*1.25*1.8
Machine weight T 3.5
Oil Tank Capacity L 210

■ The Injection Units

Short and forceful double-cylinder injection system is used to ensure the steady injection motion.The strain free fixed mold plate and screw assembly with optimized design help to reach better plasticing capacity and effect. PID temperature control regulate the speed and pressure of injection, pressure keeping, smelting, back pressure and other motions to ensure the quality of formed products and continuation of production.Auto material preparation, drooling proof,and anti cold start lapse functions ensure the high efficent,simple and safe operations.
