2400KN Tie Injection Molding Machine

Product Details:
Place of Origin: CHINA
Brand Name: HAIJIA
Certification: CE ISO9001
Model Number: HJF 290
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Export Standard Packing
Delivery Time: 20-30days
Payment Terms: L/C, T/T, D/P, Western Union
Supply Ability: 100 Set/Sets per Month

Detail Information

Structure: Horizontal Plastic Type: Thermoplastic
Plasticizing Way: Screw Type Clamping Way: Hydraulic & Mechanical
Automation: Automatic Transport Package: Export Standard Packing
HS Code: 8477101090 Clamping Force: 2400KN
High Light:

2400KN Tie Injection Molding Machine

,

205MPa Tie Injection Molding Machine

,

180rpm Plastic Injection Molding Machine

Product Description

HAIJIANG supply all kinds of injection molding machines from 50T to 3000T, including color chips making machine, energy saving injection molding machine, gears making machine, dual clear color injection molding machine, bakelite injection molding machine, PET preform injection molding machine, Fixed pump and variable pump injection molding machine, PVC fitting injection molding machine, screw barrel for injection molding machine etc.

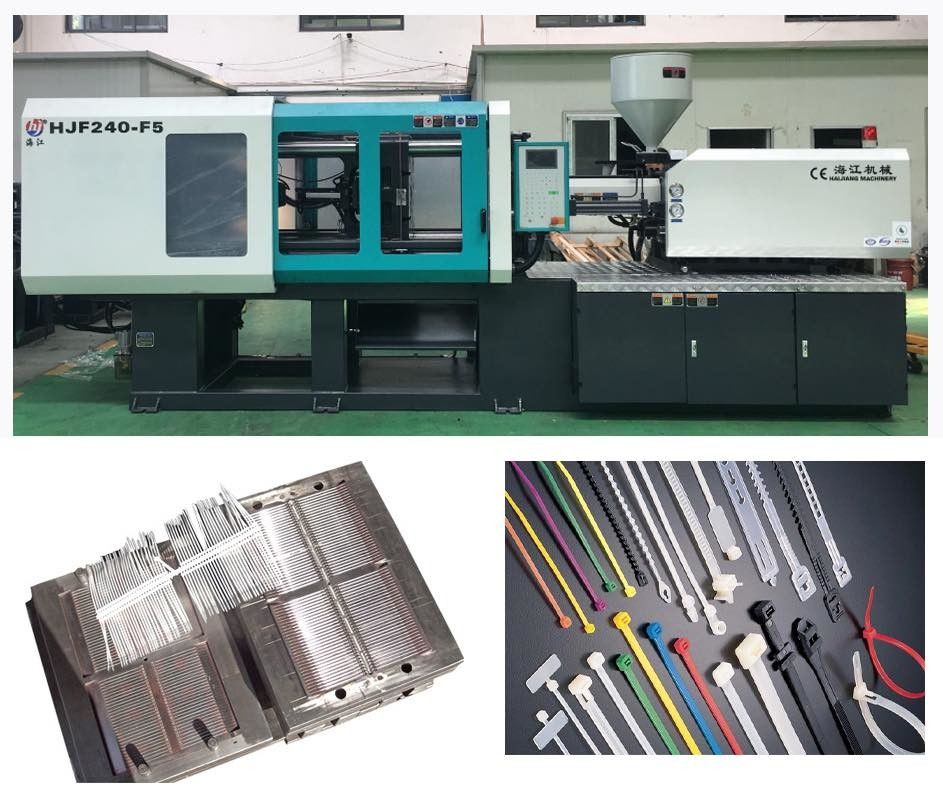

2400KN Tie Injection Molding Machine 0



1. HAIJIANG for injection molding machine features:

→ bigger space between tie-bars

→ central-clamping structure

→ famous components

→ energy saving with servo motor

→ low noise, fast respons

→ high precision, Stable and super long life

T-Slot Platen

abundant Spare Parts

→ better price







SPECIFICATION HJF-290
  A B C
Screw Diameter Mm 55 60 65
Screw L/D Ration L/D 23.1 21 19.3
Shot Size(Theoretical) cm3 712 847 994.9
Injection Weight(PS) g 648 779.9 905
Injection Rate g/s 210 240 270
Injection Pressure MPa 205 168 143
Screw Speed rpm 0~180
Clamp tonnage KN 2900
Opening stroke Mm 585
Space Between Tie Bars mm 600*600
Max.Mold Height mm 600
Min.Mold Height mm 220
Ejector Stroke mm 150
Ejector Tonnage KN 75
Max.Pump Pressure MPa 16
Pump Motor Power KW 30
Heater power KW 15
Machine Dimension(L*W*H) M 6.0*1.6*2.1
Machine weight T 8.5
Oil Tank Capacity L 570
