Plastic Items Manufacturing Machine , PET Preform Injection Making Machine

China Plastic Items Manufacturing Machine , PET Preform Injection Making Machine supplier

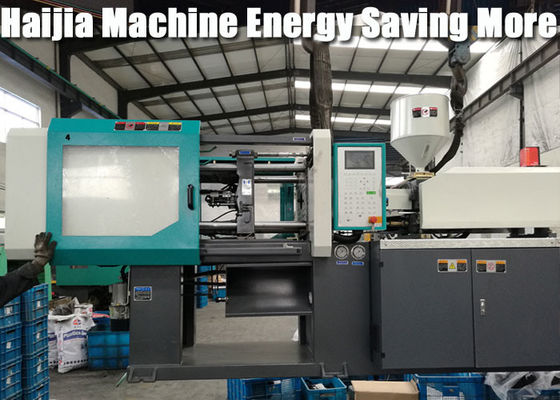

Large Image :  Plastic Items Manufacturing Machine , PET Preform Injection Making Machine

Product Details:

Place of Origin: China
Brand Name: HAIJIA
Certification: CE ISO9001
Model Number: HJF80

Payment & Shipping Terms:

Minimum Order Quantity: 1 sets
Price: Negotiation
Packaging Details: standard export packing
Delivery Time: 30 days
Payment Terms: L/C, D/P, T/T, Western Union
Supply Ability: 100 sets one month
Contact Now
Detailed Product Description
Speed: 5 Second Per Shot Max Pump Pressure: 16Mpa
Structure: Horizontal Plasticizing Way: Screw
Usage: PET Preform Use Space Between Tie Bar: 315mm*315mm
Oil Tank Capacity: 210L Heat Power: 5.3kw

Screw type high speed injection molding machine shot weight openning stroke 275mm screw speed 0-220rpm





1. The Characteristic Of HAIJIA Special Machine



Hydraulic Unit:
Advanced hydraulic system design, through proportional control of pressure, flow achieves rapid multi-level pressure, speed switching, the system configuration is reasonable, stable and reliable. The noise is less than 75 dB. The medium and large machine adopts a two-way cartridge inserted valve system to improve the system of flow and speed of response, and makes the whole machine reach the best performance.

Oil-supplying unit:
The international advanced technology
The automatic oil-supplying device adopted

Servo System:

After receiving the pressure and flow instruction from computer controller, the servo driver will compare it with the actual pressure and flow feedback, and rectify the difference by controlling the rotating speed of the servo motor. In this way, the control of injection molding is not only acurate but also fast, and the repeatabillity of the products high as well

Thin wall bowl


HJF80 high speed injection Molding Machine
Injection Unit                                                                        A                      B
Screw Diameter mm                                      32                   36
Screw L/D Ratio L/D                                      21.5               19.8
Shot Size (Theoretical) cm3                                      101                 123
Injection Weight (PS) g                                     91.9                 111
Injection Rate g/s                                       70                   82
Injection Pressure Mpa                                                 16
Screw Speed rpm                                             0-220
Clamping Unit
Clamp Tonnage KN                                             800
Toggle Stroke mm                                              275
Space Between Tie Bars mm                                            315*315
Max.Mold Height mm                                             320
Min.Mold Height mm                                             120
Ejector Stroke mm                                             80
Ejector Tonnage KN                                             27
Others
Max.Pump Pressure Mpa                                             16
Pump Motor Power KW                                              9
Heat Power KW                                              5.3
Machine Dimension m                                         3.5*1.2*1.6
Machine Weight t                                              5





High speed injection molding machine,hydraulic components of eurpean and american brands with different circuit design ensure locking fast,low nosie,shortent the molding cycle,improve production efficiency
