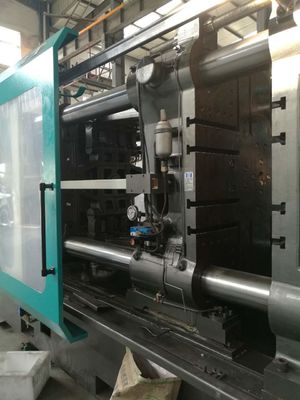

High Performance Plastic Crate Making Machine 37 Pump Motor Power

Certification
China Ningbo haijiang machinery manufacturing co.,Ltd certification
China Ningbo haijiang machinery manufacturing co.,Ltd certification
Customer Reviews
Haijiang injection molding machine good quality ,but price is better than Bole and Haitian. It is good choice

—— Muhammad Khali

I'm Online Chat Now

High Performance Plastic Crate Making Machine 37 Pump Motor Power

High Performance Plastic Crate Making Machine 37 Pump Motor Power
High Performance Plastic Crate Making Machine 37 Pump Motor Power High Performance Plastic Crate Making Machine 37 Pump Motor Power High Performance Plastic Crate Making Machine 37 Pump Motor Power High Performance Plastic Crate Making Machine 37 Pump Motor Power High Performance Plastic Crate Making Machine 37 Pump Motor Power High Performance Plastic Crate Making Machine 37 Pump Motor Power

Large Image :  High Performance Plastic Crate Making Machine 37 Pump Motor Power

Product Details:
Place of Origin: China (Mainland)
Brand Name: HAIJIA
Certification: CE ISO9001
Model Number: HJF400
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD $10,000--$620,000 set
Packaging Details: Standard Export Package for Injection Machine
Delivery Time: 20-30days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 Set/Sets per Month

High Performance Plastic Crate Making Machine 37 Pump Motor Power

Description
Max.Pump Pressure: 16 Pump Motor Power: 37
Heater Power: 20 Machine Dimension(LxWxH): 7*1.9*2.4
Machine Weight: 14.5 Oil Tank Capacity: 950
High Light:

plastic box making machine

,

plastic product manufacturing machinery

Adjustment Unit
Automatic Mold Height Adjustment Saves the time and cost during the mold changing.


Clamping Unit
The plates were designed using FEM software, ensuring a stable and rigid clamping system. Five point inward moving double toggle system ensures high rigidity and precision for mold clamping and also reducing stress and Strain effects.


Hydraulic Unit
The hydraulic system using the world famous pump and control valve can control the machine running precisely, ensuring the precision, reliability and durability of whole machine.


Injection Unit
Dual-pillar supporting and dual-cylinder injection balance devices ensure the stress on screw balanced during injection.
Specific screw and barrel designs are available for processing different material requirements.


Electronically Controlled Unit
1. CPU controller and display are independent and reliable.
2. A larger color LCD screen enhances clear display and supports multi-language compatibility.
3. The control system also supports remote monitor. In the event of a control problems, the machine can be connected to internet through a special interface. Inject service can realize remote fault diagnosis and maintenance.
4. A screen saver function extends the LCD life.
5. Ultra bright LED is provided for input and output point inspection. Proving convenient indication of the machine’s operation and machine service
6. A data hardware lock is provided to prevent unauthorized people from effecting the machines performance.
7. Closed Loop PID barrel temperature control.

8. Dust and waterproof control cabinets provide a neat and tidy enclosure all electrical control components



SPECIFICATION HJF400
Screw Type A B C

D

fruit basket

Screw Diameter Mm 70 75 80 85
Screw L/D Ration L/D 22 20.5 19.25 17.8
Shot Size(Theoretical) cm3 1384 1589 1808 2098
Injection Weight(PS) g 1246 1430 1627 1888
Injection Rate g/s 382 438 499 530
Injection Pressure MPa 200 174 155 130
Screw Speed Rpm 0~160
Clamping Force KN 4000
Opening stroke Mm 745
Space Between Tie Bars mm 725*725
Max.Mold Thickness mm 810
Min.Mold Thickness mm 280
Ejector Strok mm 170
Ejector Tonnage KN 110
Max.Pump Pressure MPa 16
Pump Motor Power KW 37
Heater power KW 20
Machine Dimension(L*W*H) M 7*1.9*2.4
Machine weight T 14.5
Oil Tank Capacity L 950
