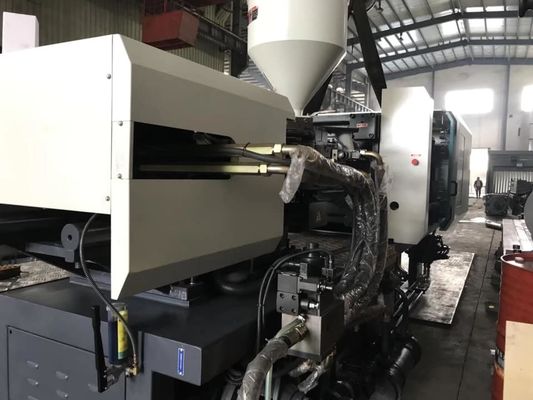

Auto Servo HJF240 Pet Preform Making Machine For Mineral Water Bottle

China Auto Servo HJF240 Pet Preform Making Machine For Mineral Water Bottle supplier
Auto Servo HJF240 Pet Preform Making Machine For Mineral Water Bottle supplier Auto Servo HJF240 Pet Preform Making Machine For Mineral Water Bottle supplier Auto Servo HJF240 Pet Preform Making Machine For Mineral Water Bottle supplier Auto Servo HJF240 Pet Preform Making Machine For Mineral Water Bottle supplier

Large Image :  Auto Servo HJF240 Pet Preform Making Machine For Mineral Water Bottle

Product Details:

Place of Origin: china
Brand Name: Haijia
Certification: CE,ISO9001
Model Number: HJF240

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD25000-35000USD per set
Packaging Details: export standard packing
Delivery Time: 20 days
Payment Terms: L/C, D/P, T/T, Western Union
Supply Ability: 300 sets per month
Contact Now
Detailed Product Description
Style: Horizontal,horizontal Servo Motor Type: Tube Head Injection,Tube Shoulder Injection
Condition: New Automatic: Yes
Opening Stroke: 470mm After-sales Service Provided: Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support
Injection Weight: 101-6280 Plastic Type: Thermoplastic
Power(w): 18.5kw

HJF240 Injection Molding Machine

Adjustment Unit
Automatic Mold Height Adjustment Saves the time and cost during the mold changing.
Clamping Unit
The plates were designed using FEM software, ensuring a stable and rigid clamping system. Five point inward moving double toggle system ensures high rigidity and precision for mold clamping and also reducing stress and Strain effects.
Hydraulic Unit
The hydraulic system using the world famous pump and control valve can control the machine running precisely, ensuring the precision, reliability and durability of whole machine.
Injection Unit
Dual-pillar supporting and dual-cylinder injection balance devices ensure the stress on screw balanced during injection.
Specific screw and barrel designs are available for processing different material requirements.
Electronically Controlled Unit
1.CPU controller and display are independent and reliable.
2.A larger color LCD screen enhances clear display and supports Multi language compatibility.
3.The control system also supports remote monitor. In the event of a control problems, the machine can be connected to internet through a special interface. Inject service can realize remote fault diagnosis and maintenance.


Auto Servo HJF240 Pet Preform Making Machine For Mineral Water Bottle



SPECIFICATION HJF240
Screw Type A B C
Screw Diameter Mm 50 55 60
Screw L/D Ration L/D 22.2 20 18.2
Shot Size(Theoretical) cm3 508 593 706
Injection Weight(PS) g 462 534 642
Injection Rate g/s 148 179 202
Injection Pressure MPa 180 160.8 128
Screw Speed rpm 0~180
Clamping Force KN 2400
Opening stroke Mm 490
Space Between Tie Bars mm 530*510
Max.Mold Height mm 530
Min.Mold Height mm 200
Ejector Stroke mm 165
Ejector Tonnage KN 70
Max.Pump Pressure MPa 16
Pump Motor Power KW 18.5
Heater power KW 11.65
Machine Dimension(L*W*H) M 5.4*1.5*2
Machine weight T 7
Oil Tank Capacity L 340

Haijiang Machinery Main configuration
Standard machinery

PLC PORCHESON (TAIWAN)
Vane Pump Albert (USA)
Directional Valve Northman(TAIWAN) /Yuken(JAPAN)/Tokimec(JAPAN)
Proportional Valve HNC (TAIWAN)
Electric Motor Qianlima (CHINA )
Contactor LS (KOREA)
Plasticizing Oil Motor STF(CHINA)
Air Breaker LS (KOREA)
Thermal Overload Relay LS (KOREA)
Limit Switches Omoron (JAPAN )
Liner Position Sensors (Electric Ruler) Minor (China)
Lubrication Pump ChaoRun(China)

Servo machinery

PLC PORCHESON (TAIWAN)
Directional Valve Northman(TAIWAN) /Yuken(JAPAN)/Tokimec(JAPAN)
Air Breaker LS (KOREA)
SSR(solid state relay) Fotek(TAIWAN)
Plasticizing Oil Motor STF(China)
Limit Switches Omoron (JAPAN )
Gear Pump SUMITOMO (JAPAN)
Servo Driver DELTA (TAIWAN)
Servo Sensor ASHCROFT(GERMAN)
Servo Motor Albert(USA)/Phase(ITALY)

SPARE PARTS( FOR FREE)

1. Mold clamping with bolts: 8PCS, 2. Nozzles: 1PCS,
3. Toolbox: 1SET, 4. Heating Band: 2PCS,
5. Lubrication Oil: 1 Bucket 6. Limit Switch: 2PCS,
7. Hexagon Wrench: 1SET, 8. Thermocouple: 2PCS
9. Seal Ring: 2PCS, 10. Machine shockproof pads: 6PCS,
11. Vise: 1PCS, 12. Power socket for auxiliary machines: 2PCS,
13. Wrench: 1PCS, 14. Screwdriver: 2PCS,

Note: Different machines, the quantity of free accessories is different.
