clear plastic shoe box injection molding machine manufacturer storage mould containers production line in ningbo cost

China clear plastic shoe box injection molding machine manufacturer storage mould containers production line in ningbo cost supplier
clear plastic shoe box injection molding machine manufacturer storage mould containers production line in ningbo cost supplier clear plastic shoe box injection molding machine manufacturer storage mould containers production line in ningbo cost supplier clear plastic shoe box injection molding machine manufacturer storage mould containers production line in ningbo cost supplier clear plastic shoe box injection molding machine manufacturer storage mould containers production line in ningbo cost supplier

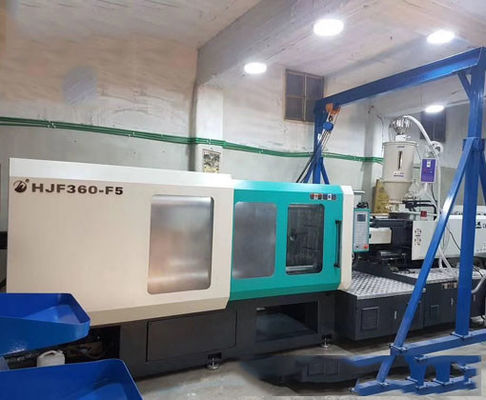

Large Image :  clear plastic shoe box injection molding machine manufacturer storage mould containers production line in ningbo cost

Product Details:

Place of Origin: China
Brand Name: HAIJIA
Certification: CE ISO9001
Model Number: HJF780

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Standard Export Package
Delivery Time: 30 days
Payment Terms: L/C, D/P, T/T, Western Union
Supply Ability: 5000pcs per year
Contact Now
Detailed Product Description
Structure: Horizontal Injection Molding Machine Usage: Electric Parts
Machine Weight:: 37T Clamping Force:: 7800KN
Space Between Tie Bar: 980*950mm Pump Motor Power: 37+30KW

clear plastic shoe box injection molding machine manufacturer storage mould containers production line in ningbo cost



Professional injection moulding machine controller with software and hardware of industrial standard is convenient to expansion and revision of performance.
Adopting double CPU control makes high speed.
Mainly adopting PID control, the control accuracy reaches±1°.
Has the function of network management, improving efficency.

Aftersales service: Professional & timely.

.Due to new toggle design with optimized kinematics.

Take 200-ton clamping unit for example
Vm: Moving speed of movable platen
Vo: Moving speed of oil cylinder

High Energy saving

Under the ideal working state, Power consumption is 40% less than that of variable displacement pump and 70% less than that of fixed displacement pump, save the cost effectively.

High precision

Precise control of low pressure & low flow, repeating precision is less than 0.5%. Weight error of the products is 0.4%~0.7%, with semi-close loop system nearly.

Low noise

Different from ordinary fixed pump injection molding machine, servo power-saving injection molding machine is working only when necessary. And working noise is less than 70dB, will be much quieter for your working area.


The new generation mold locking device and computer emulation optimized parameter makes motions of the moving plate, fixed plate and high rigidity toggle structure, the characteristic of high strength and anti-fatigue is secured. As compared with similar machines, it owns bigger internal spur between tie bars, mold space and mold opening stroke and may process plastic products of bigger size.

The Injection Units

Under the ideal working state, Power consumption is 40% less than that of variable displacement pump and 70% less than that of fixed displacement pump, save the cost effectively.

Precise control of low pressure & low flow, repeating precision is less than 0.5%. Weight error of the products is 0.4%~0.7%, with semi-close loop system nearly.

With steady capability, servo gearshift dynamical control system has equipped with pressure feedback device with high precision and sensitivity, which forms close-loop precision control, cycle time effectively shortened and improving production efficiency.




clear plastic shoe box injection molding machine manufacturer storage mould containers production line in ningbo cost



SPECIFICATION HJF-780
  A B C D
Screw Diameter Mm 90 95 105 110
Screw L/D Ration L/D 23.2 22 19.9 19
Shot Size(Theoretical) cm3 2924 3258 3981 4369
Injection Weight(PS) g 2632 2933 3583 3932
Injection Rate g/s 574 640 781 858
Injection Pressure MPa 195 175 143 130
Screw Speed rpm 115
Clamp tonnage KN 7800
Opening stroke Mm 950
Space Between Tie Bars mm 980*950
Max.Mold Height mm 960
Min.Mold Height mm 400
Ejector Stroke mm 280
Ejector Tonnage KN 186
Max.Pump Pressure MPa 16
Pump Motor Power KW 37+30
Heater power KW 56.7
Machine Dimension(L*W*H) M 11.43*2.40*3.14
Machine weight T 37
Oil Tank Capacity L 1500
