|Structure:||Horizontal Injection Molding Machine||Usage::||Electric Parts|
|Machine Weight::||7T||Clamping Force::||2400KN|
|Space Between Tie Bar:||530*510mm||Pump Motor Power:||18.5kw|

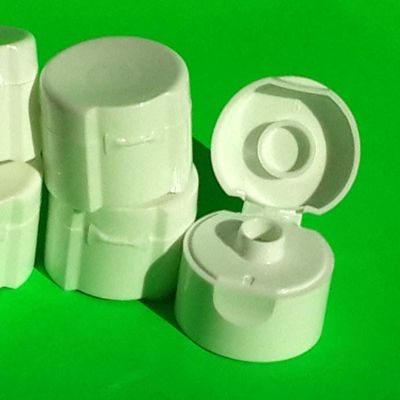

4 oz plastic bottle with cap production line automatic plastic bottle cap making machine pet plastic cap mould price
Fixed platen with centralized force loading and less platen flexing. Redesigned moving platen providing centralized force distribution from the toggle system to the mold. The result: higher rigidity and stability.
.Due to new toggle design with optimized kinematics.
Take 200-ton clamping unit for example
Vm: Moving speed of movable platen
Vo: Moving speed of oil cylinder
10.FOUR SHORT STROKE MOLD BREAK CYLINDERS
For accurate mold height control with closed loop position feedback, ensures the mold is clamped with parallel movement.
for entire machine operation without loss of high pressure throttle and overflow energy. As comparedwith constant displacement pump, it saves power by 30%~60%. A motor with same power may be fitted with an oil pump of bigger displacement and thus accelerates the speed of machine.Besides, the low oil temperature will prolong the service life of sealing elements.
Buffer device is used in every mold opening and clamping oil way to ensure steady mold opening and clamping operation without any impact.Besides, differential mold clamping operation is fitted to ensure high production efficiency.
The machine use the high-performance servo dynamic control system,the oil pump as the power source,having the characteristics as follow:high response,saving energy, low noise, high-control precision, and have the breakthrough in the prefect connection of the electrical servo and hydraulic drive system.
Clamping system: Faster response, steable and high rigidity.
Injection system: Accurate and flexible, lower rejection rate.
Control system: omputer and simple operation,molding data memory system.
Power system: Energy saving, high efficient and precise.
Metal parts: The thickness of our frame, metal plate and wallboard are thicker than other company.
Ceramic heating loop: Uniform heating, better thermal insulation properties so good for production.
Visiable lubrication system: on time clean, avoid cast steel parts abrasion and broken.
Oil treasure: Filter of hydraulic oil, good for pump and valves.
Long working life: Imported spare parts and updated version.
Aftersales service: Professional & timely.
Computer Controller PLC
Professional injection moulding machine controller with software and hardware of industrial standard is convenient to expansion and revision of performance.
Adopting double CPU control makes high speed.
Mainly adopting PID control, the control accuracy reaches±1°.
Has the function of network management, improving efficency.
The machine use the high-performance servo dynamic control system, the oil pump as the power source, having the characteristics as follow: high response,saving energy, low noise, high-control precision, and have the breakthrough in the prefect connection of the electrical servo and hydraulic drive system.
Different from ordinary fixed pump injection molding machine, servo power-saving injection molding machine is working only when necessary. And working noise is less than 70dB, will be much quieter for your working area.
|Screw L/D Ration||L/D||22.2||20||18.2|
|Space Between Tie Bars||mm||530*510|
|Pump Motor Power||KW||18.5|
|Oil Tank Capacity||L||340|
