Product Details:
|
| Structure: | Horizontal Injection Molding Machine | Usage:: | Electric Parts |
|---|---|---|---|
| Machine Weight:: | 7T | Clamping Force:: | 2400KN |
| Space Between Tie Bar: | 530*510mm | Pump Motor Power: | 18.5kw |
| High Light: | all electric injection molding machines,plastic products making machine |
||
.Fixed platen with centralized force loading and less platen flexing. Redesigned moving platen providing centralized force distribution from the toggle system to the mold. The result: higher rigidity and stability.
Due to new toggle design with optimized kinematics.Take 200-ton clamping unit for example,Vm: Moving speed of movable platen,Vo: Moving speed of oil cylinder.
Highly optimized servo-hydraulic technology, with improved efficiency for lower energy consumption.
The technologically matured Jupiter II Series convinces not only with rapid, smooth mold movements and its highly economical energy consumption. The latest upgrade to the Jupiter - called “Plus” - has brought significant additional improvements.
For accurate mold height control with closed loop position feedback, ensures the mold is clamped with parallel movement.
Buffer device is used in every mold opening and clamping oil way to ensure steady mold opening and clamping operation without any impact.Besides, differential mold clamping operation is fitted to ensure high production efficiency.
Clamping system: Faster response, steable and high rigidity.
Injection system: Accurate and flexible, lower rejection rate.
Control system: omputer and simple operation,molding data memory system.
Power system: Energy saving, high efficient and precise.
Metal parts: The thickness of our frame, metal plate and wallboard are thicker than other company.
Molding stability,Compared with conventional injection molding machines repeatability is greatly improved due to servo motor closed-loop control.,Quick response,Featuring a dynamic servo motor with a response time of only 0.05sec,Quiet operation,The machine runs at much lower noise levels, particularly in low speed applications.
Clamping system: Faster response, steable and high rigidity.
Injection system: Accurate and flexible, lower rejection rate.
Control system: omputer and simple operation,molding data memory system.
Power system: Energy saving, high efficient and precise.
The Mould Adjusting Units
The automatic mold adjusting device driven by hydraulic motor adopts gear coupling drive, features steadiness, high-efficiency and saving mold loading time.
Short and forceful double-cylinder injection system is used to ensure the steady injection motion.The strain free fixed mold plate and screw assembly with optimized design help to reach better plasticing capacity and effect. PID temperature control regulate the speed and pressure of injection, pressure keeping, smelting, back pressure and other motions to ensure the quality of formed products and continuation of production.Auto material preparation, drooling proof,and anti cold start lapse functions ensure the high efficent,simple and safe operations.

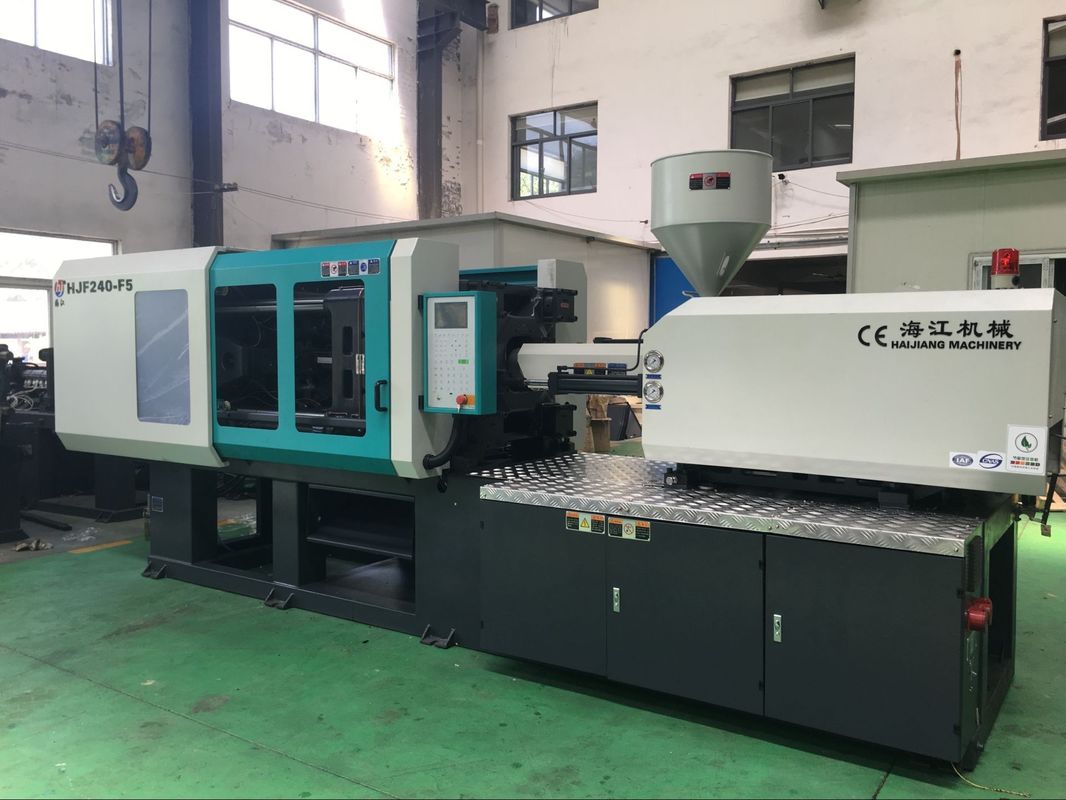

| SPECIFICATION | HJF-240 | |||
| A | B | C | ||
| Screw Diameter | Mm | 50 | 55 | 60 |
| Screw L/D Ration | L/D | 22.2 | 20 | 18.2 |
| Shot Size(Theoretical) | cm3 | 508 | 570 | 706 |
| Injection Weight(PS) | g | 462 | 518 | 642 |
| Injection Rate | g/s | 148 | 179 | 202 |
| Injection Pressure | MPa | 180 | 160.8 | 128 |
| Screw Speed | rpm | 0~180 | ||
| Clamp tonnage | KN | 2400 | ||
| Opening stroke | Mm | 490 | ||
| Space Between Tie Bars | mm | 530*510 | ||
| Max.Mold Height | mm | 530 | ||
| Min.Mold Height | mm | 200 | ||
| Ejector Stroke | mm | 165 | ||
| Ejector Tonnage | KN | 70 | ||
| Max.Pump Pressure | MPa | 16 | ||
| Pump Motor Power | KW | 18.5 | ||
| Heater power | KW | 11.65 | ||
| Machine Dimension(L*W*H) | M | 5.4*1.5*2 | ||
| Machine weight | T | 7 | ||
| Oil Tank Capacity | L | 340 | ||
