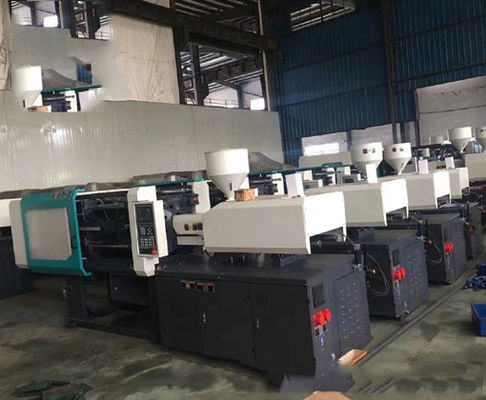

High Efficiency Plastic Injection Molding Equipment 1800KN Clamping Force

High Efficiency Plastic Injection Molding Equipment 1800KN Clamping Force

High Efficiency Plastic Injection Molding Equipment 1800KN Clamping Force
High Efficiency Plastic Injection Molding Equipment 1800KN Clamping Force High Efficiency Plastic Injection Molding Equipment 1800KN Clamping Force High Efficiency Plastic Injection Molding Equipment 1800KN Clamping Force High Efficiency Plastic Injection Molding Equipment 1800KN Clamping Force High Efficiency Plastic Injection Molding Equipment 1800KN Clamping Force High Efficiency Plastic Injection Molding Equipment 1800KN Clamping Force

Large Image :  High Efficiency Plastic Injection Molding Equipment 1800KN Clamping Force Get Best Price

Product Details:

Place of Origin: CHINA
Brand Name: HAIJIA
Certification: CE/ISO
Model Number: HJ-180

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Standard export packaging.
Delivery Time: 7-15 work days .
Payment Terms: Western Union, L/C, T/T, D/P
Supply Ability: 50Set/Month
Detailed Product Description
Suitable Material: PP/PE/PS/PC/PET/PVC/ABS Injection Weight: 300g
Tie Bars: 470*470mm Clamping Force: 1800KN
Toggle Stroke: 430mm Screw Diameter: 45mm
High Light:

all electric injection molding machines

,

plastic products making machine

Servo Injection molding Machines Features


1. High energy savings
Under normal operating conditions, compared with conventional
hydraulic injection molding machines, energy savings of 20-80%
can be achieved.


2. Molding stability
Compared with conventional injection molding machines repeatability is greatly improved due to servo motor closed-loop control.


3. Quick response
Featuring a dynamic servo motor with a response time of only 0.05sec


4. Quiet operation
The machine runs at much lower noise levels, particularly in low speed applications.


5. Reliable holding pressure
Compared with traditional hydraulic machine the holding pressure is more stable and does not have limitation.


16 Better oil temperature stabitily
The servo system only delivers hydraulic oil as it is needed for the various functions. This prevents unnecessary generation of heat and substantially reduces oil cooling requirements.
Servo energy-saving system
Using the servo motor oil esectriciyt composite sturcture, high response, low noile and excellent
electricity -saving performance.
■ Computer Controller PLC
Professional injection moulding machine controller with software and hardware of industrial standard is convenient to expansion and revision of performance.
Adopting double CPU control makes high speed.
Mainly adopting PID control, the control accuracy reaches±1°.
Has the function of network management, improving efficency.
■ The Mould Adjusting Units
The automatic mold adjusting device driven by hydraulic motor adopts gear coupling drive, features steadiness, high-efficiency and saving mold loading time.

Characteristic
The machine use the high-performance servo dynamic control system, the oil pump as the power source, having the characteristics as follow: high response,saving energy, low noise, high-control precision, and have the breakthrough in the prefect connection of the electrical servo and hydraulic drive system.
High Energy saving
Under the ideal working state, Power consumption is 40% less than that of variable displacement pump and 70% less than that of fixed displacement pump, save the cost effectively.
High precision
Precise control of low pressure & low flow, repeating precision is less than 0.5%. Weight error of the products is 0.4%~0.7%, with semi-close loop system nearly.
Low noise
Different from ordinary fixed pump injection molding machine, servo power-saving injection molding machine is working only when necessary. And working noise is less than 70dB, will be much quieter for your working area.

High Efficiency Plastic Injection Molding Equipment 1800KN Clamping Force 0

180T MACHINERY PARAMETER

SPECIFICATION HJF-180
  A B C
Screw Diameter Mm 40 45 48
Screw L/D Ration L/D 22.5 20 18.8
Shot Size(Theoretical) cm3 304 349 431
Injection Weight(PS) g 274 314 388
Injection Rate g/s 108 128 158
Injection Pressure MPa 202 159 140
Screw Speed rpm 0~185
Clamp tonnage KN 1800
Opening stroke Mm 430
Space Between Tie Bars mm 470*470
Max.Mold Height mm 500
Min.Mold Height mm 180
Ejector Stroke mm 130
Ejector Tonnage KN 45
Max.Pump Pressure MPa 16
Pump Motor Power KW 15
Heater power KW 7.5
Machine Dimension(L*W*H) M 5.1*1.4*1.9
Machine weight T 5.5
Oil Tank Capacity L 240
