Durable PVC Mould Making Machine , PVC Connection Pipe Machine Low Noise

China Durable PVC Mould Making Machine , PVC Connection Pipe Machine Low Noise supplier

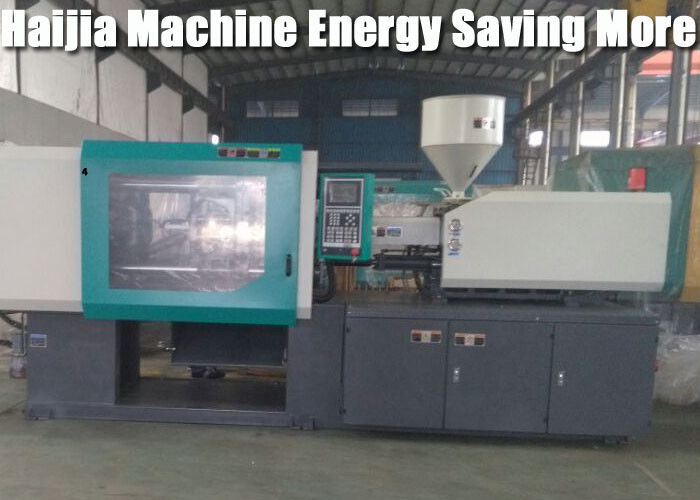

Large Image :  Durable PVC Mould Making Machine , PVC Connection Pipe Machine Low Noise

Product Details:

Place of Origin: China
Brand Name: HAIJIA
Certification: CE ISO9001
Model Number: HJF2000

Payment & Shipping Terms:

Minimum Order Quantity: 1 sets
Price: Negotiation
Packaging Details: standard export packing
Delivery Time: 30 days
Payment Terms: L/C, D/P, T/T, Western Union
Supply Ability: 100 sets one month
Contact Now
Detailed Product Description
Machine Typehydraulic Type: Hydraulic Clamping Force: 20000 KN
Structure: Horizontal Plasticizing Way: By Screw
Usage: Large Size Plastic Products Space Between Tie Bar: 1650mm*1500mm
Oil Tank Capacity: 3700L Heat Power: 110.7kw

Toggle type pvc pipe fitting injection molding machine Max pump pressure 17.5 Mpa pump motor power 45+55+55 kw
The Characteristic Of HAIJIA Special Machine
Close loop barrel temperature control
Clamping unit
Five point double tiggle clamping unit
Electronic ruler for mold open and close position
Mechanical safety device
Multi stage of mold open /close speed, pressure and position
Fast mold close
Automatic mold height adjustment
Low pressure mold protection
Box model platen: T slots
Auto centering lubrication system
Propoffional pressure and speed control
Oil suck filter
Oil temperature control and alarm
By-pass oil filter
Hydraulic closed loop and motor speed closed loop is realized by control system with the features of high repetition, high linearity, high linearity, high efficiency, high precision, fast response, low rejection rate,low noise, low vibration and long service life, High-rigidity template design with T shot andordinary threaded hole facilitates the mold installtion. Oil filter equipment of high performance and high precision can keep the grease within NAS8. Color control system is adopted

HJF2000 High quality hydraulic injection Molding Machine
Injection Unit                                                                       A                      B
Screw Diameter mm                                    140                    150
Screw L/D Ratio L/D                                    24                      22
Shot Size (Theoretical) cm3                                    11238                 12900
Injection Weight (PS) g                                    10226                  11739
Injection Rate g/s                                    1360                    1560
Injection Pressure Mpa                                     163                     142
Screw Speed rpm                                                70
Clamping Unit
Clamp Tonnage                      KN                                                20000
Toggle Stroke                        mm                                                  1600
Space Between Tie Bars       mm                                              1650*1500
Max.Mold Height                     mm                                                   1620
Min.Mold Height                      mm                                                   800
Ejector Stroke                         mm                                                   420
Ejector Tonnage                     KN                                                   490
Max.Pump Pressure              Mpa                                                    16.5
Pump Motor Power                KW                                                  45+55+55
Heat Power                            KW                                                    110.7
Machine Dimension                 m                                               17.8*3.35*4.28
Machine Weight                       t                                                       156

Hydraulic injection molding machine,hydraulic components of eurpean and american brands with different circuit design ensure locking fast,low nosie,shortent the molding cycle,improve production efficiency
