Special production bailer injection molding machine with handle type Providing better lubrication

Special production bailer injection molding machine with handle type Providing better lubrication
Special production bailer injection molding machine with handle type Providing better lubrication Special production bailer injection molding machine with handle type Providing better lubrication Special production bailer injection molding machine with handle type Providing better lubrication Special production bailer injection molding machine with handle type Providing better lubrication Special production bailer injection molding machine with handle type Providing better lubrication

Large Image :  Special production bailer injection molding machine with handle type Providing better lubrication

Product Details:
Place of Origin: China (Mainland)
Brand Name: HAIJIA
Certification: CE ISO9001
Model Number: HJF140
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD $10,000--$620,000 set
Packaging Details: Standard Export Package for Injection Machine
Delivery Time: 20-30days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000set/sets per year

Special production bailer injection molding machine with handle type Providing better lubrication

Description
Screw Diameter: 42 Screw L/D Ratio: 21.6
Shot Size(Theoretical): 263 Injection Weight(PS): 236
Injection Rate: 105 Injection Pressure: 159
High Light:

plastic moulding machine

,

automatic injection moulding machine

Adjustment Unit
Automatic Mold Height Adjustment Saves the time and cost during the mold changing.
Clamping Unit
The plates were designed using FEM software, ensuring a stable and rigid clamping system. Five point inward moving double toggle system ensures high rigidity and precision for mold clamping and also reducing stress and Strain effects.
Hydraulic Unit
The hydraulic system using the world famous pump and control valve can control the machine running precisely, ensuring the precision, reliability and durability of whole machine.
Injection Unit
Dual-pillar supporting and dual-cylinder injection balance devices ensure the stress on screw balanced during injection.
Specific screw and barrel designs are available for processing different material requirements.
Electronically Controlled Unit
1.CPU controller and display are independent and reliable.
2.A larger color LCD screen enhances clear display and supports multi-language compatibility.
3.The control system also supports remote monitor. In the event of a control problems, the machine can be connected to internet through a special interface. Inject service can realize remote fault diagnosis and maintenance.
4.A screen saver function extends the LCD life.
5.Ultra bright LED is provided for input and output point inspection. Proving convenient indication of the machine’s operation and machine service
6.A data hardware lock is provided to prevent unauthorized people from effecting the machines performance.
7.Closed Loop PID barrel temperature control.

8.Dust and waterproof control cabinets provide a neat and tidy enclosure all electrical control components.

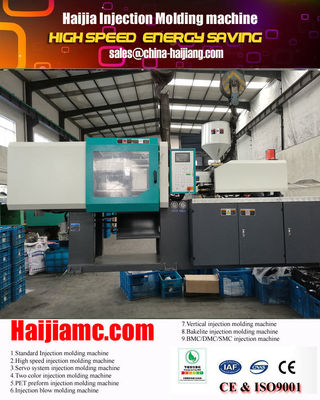

Special production bailer injection molding machine with handle type Providing better lubrication 0

SPECIFICATION HJF140
Screw Type A B C
Screw Diameter Mm 38 42 45
Screw L/D Ration L/D 22.1 21.6 19.5
Shot Size(Theoretical) cm3 215 263 302
Injection Weight(PS) g 193 236 271
Injection Rate g/s 94 105 135
Injection Pressure MPa 205 159 140
Screw Speed rpm 0~220
Clamping Force KN 1400
Opening stroke mm 380
Space Between Tie Bars mm 420*420
Max.Mold Height mm 450
Min.Mold Height mm 170
Ejector Stroke mm 120
Ejector Tonnage KN 33
Max.Pump Pressure MPa 16
Pump Motor Power KW 13
Heater power KW 7.2
Machine Dimension(L*W*H) M 4.5*1.2*1.7
Machine weight T 4.2
Oil Tank Capacity L 230
