Energy Saving Injection Molding Machine For Making Plastic Water Bottle Handle

Certification
Good quality Bakelite Injection Molding Machine for sales
Good quality Bakelite Injection Molding Machine for sales
Haijiang injection molding machine good quality ,but price is better than Bole and Haitian. It is good choice

—— Muhammad Khali

I'm Online Chat Now

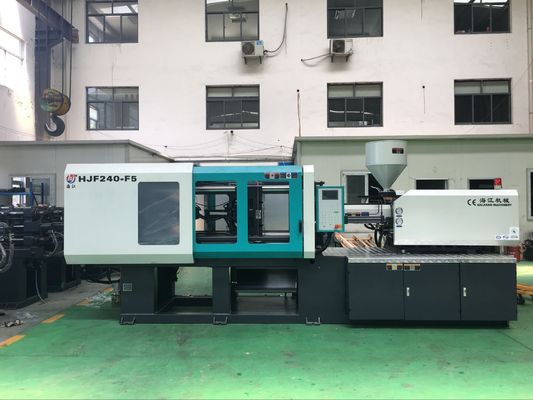

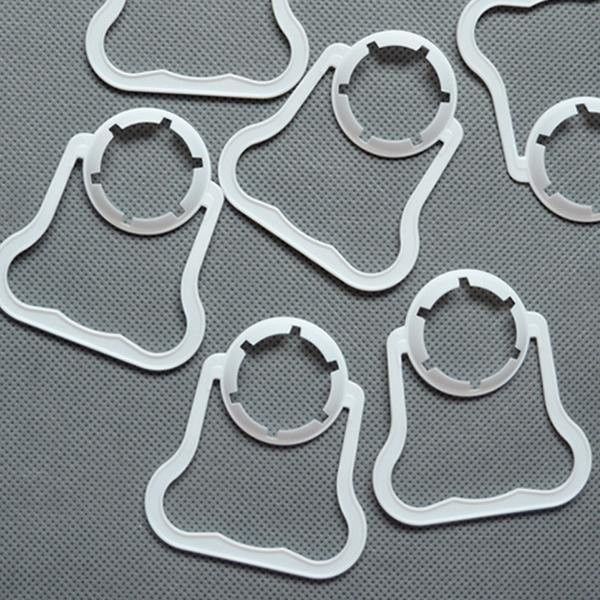

Energy Saving Injection Molding Machine For Making Plastic Water Bottle Handle

China Energy Saving Injection Molding Machine For Making Plastic Water Bottle Handle supplier
Energy Saving Injection Molding Machine For Making Plastic Water Bottle Handle supplier Energy Saving Injection Molding Machine For Making Plastic Water Bottle Handle supplier Energy Saving Injection Molding Machine For Making Plastic Water Bottle Handle supplier Energy Saving Injection Molding Machine For Making Plastic Water Bottle Handle supplier Energy Saving Injection Molding Machine For Making Plastic Water Bottle Handle supplier

Large Image :  Energy Saving Injection Molding Machine For Making Plastic Water Bottle Handle

Product Details:

Place of Origin: China
Brand Name: HAIJIA
Certification: CE ISO9001
Model Number: HJF780

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Standard Export Package
Delivery Time: 30 days
Payment Terms: L/C, D/P, T/T, Western Union
Supply Ability: 5000pcs per year
Contact Now
Detailed Product Description
Structure: Horizontal Injection Molding Machine Usage: Electric Parts
Machine Weight:: 37T Clamping Force:: 7800KN
Space Between Tie Bar: 980*950mm Pump Motor Power: 37+30KW

plastic water bottle with handle injection molding machine for making cap manufacturers for sale mould production line

The Machine Introduction

The machine use the high-performance servo dynamic control system,the oil pump as the power source,having the characteristics as follow:high response,saving energy, low noise, high-control precision, and have the breakthrough in the prefect connection of the electrical servo and hydraulic drive system.

Some of the important features:

Clamping system: Faster response, steable and high rigidity.

Injection system: Accurate and flexible, lower rejection rate.

Control system: omputer and simple operation,molding data memory system.

Power system: Energy saving, high efficient and precise.

Metal parts: The thickness of our frame, metal plate and wallboard are thicker than other company.

Ceramic heating loop: Uniform heating, better thermal insulation properties so good for production.

Visiable lubrication system: on time clean, avoid cast steel parts abrasion and broken.

Oil treasure: Filter of hydraulic oil, good for pump and valves.

Long working life: Imported spare parts and updated version.

Aftersales service: Professional & timely.

Characteristic

The machine use the high-performance servo dynamic control system, the oil pump as the power source, having the characteristics as follow: high response,saving energy, low noise, high-control precision, and have the breakthrough in the prefect connection of the electrical servo and hydraulic drive system.

High Energy saving

Under the ideal working state, Power consumption is 40% less than that of variable displacement pump and 70% less than that of fixed displacement pump, save the cost effectively.

High precision

Precise control of low pressure & low flow, repeating precision is less than 0.5%. Weight error of the products is 0.4%~0.7%, with semi-close loop system nearly.

Low noise

Different from ordinary fixed pump injection molding machine, servo power-saving injection molding machine is working only when necessary. And working noise is less than 70dB, will be much quieter for your working area.



Energy Saving Injection Molding Machine For Making Plastic Water Bottle Handle



SPECIFICATION HJF-780
  A B C D
Screw Diameter Mm 90 95 105 110
Screw L/D Ration L/D 23.2 22 19.9 19
Shot Size(Theoretical) cm3 2924 3258 3981 4369
Injection Weight(PS) g 2632 2933 3583 3932
Injection Rate g/s 574 640 781 858
Injection Pressure MPa 195 175 143 130
Screw Speed rpm 115
Clamp tonnage KN 7800
Opening stroke Mm 950
Space Between Tie Bars mm 980*950
Max.Mold Height mm 960
Min.Mold Height mm 400
Ejector Stroke mm 280
Ejector Tonnage KN 186
Max.Pump Pressure MPa 16
Pump Motor Power KW 37+30
Heater power KW 56.7
Machine Dimension(L*W*H) M 11.43*2.40*3.14
Machine weight T 37
Oil Tank Capacity L 1500
