Customed Durable Plastic Mould Injection Machine For Drawer Slides

Customed Durable Plastic Mould Injection Machine For Drawer Slides
Customed Durable Plastic Mould Injection Machine For Drawer Slides Customed Durable Plastic Mould Injection Machine For Drawer Slides Customed Durable Plastic Mould Injection Machine For Drawer Slides Customed Durable Plastic Mould Injection Machine For Drawer Slides Customed Durable Plastic Mould Injection Machine For Drawer Slides Customed Durable Plastic Mould Injection Machine For Drawer Slides

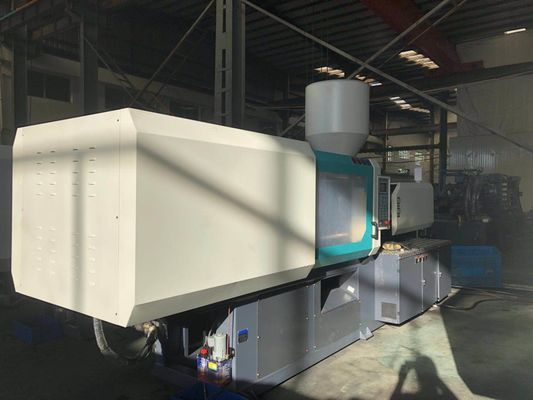

Large Image :  Customed Durable Plastic Mould Injection Machine For Drawer Slides

Product Details:
Place of Origin: CHINA
Brand Name: HAIJIA
Model Number: HJF200
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Standard Export Package for Injection Machine
Delivery Time: 20-30days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 set/sets per month

Customed Durable Plastic Mould Injection Machine For Drawer Slides

Description
Certification: CE ISO9001 Voltage: Customed Avaiable
Used For: Plastic Products Motor: Servo & Standard & Variable Pump
Keyword: Energy Saving Warranty: 18 Months
Plastic Type: Thermoplastic
High Light:

plastic moulding machine

,

automatic injection moulding machine

Characteristic



1. Strengthen locking structure

Optimized special locking system to reach efficient and fast production.

2. Centralized lubrication,reliable protection

Configuring rational centralized lubrication, providing more professional, better lubrication to make machine more cleaner.

3. Professional templates optimized design

Template by advanced finite element analysis software to optimize design, high rigidity, high strength, to meet the rapid impact conditions demand.

4. Powerful, friendly control system

Adopts professional controller and friendly interface, easy and fast operation, with good reliability.

5. New type screw driving system

Spline connection for screw and oil motor, smooth and reliable transmission, big transfer torque, easy disassembly.

6. Excellent injection performance

Double cylinder injection, entire floor-guided, reliable and stable.

7. Superior clamping system

Adopts optimized connection rod structure, faster and smoother operation.

8. New frame structure

Simple and generous appearance, machine body force reasonable and stronger.

9. Professional plasticizing system

Suitable for different types of plastic raw material with professional plasticizing and heating system, good plasticizing performance.

10. High efficient powerful servo system optional

Power system adopts high pressure gear box and servo motor, rotary encoder,pressure transducer and servo amplifier to get system closed-loop control

SPECIFICATION HJF-140
  A B C
Screw Diameter Mm 38 42 45
Screw L/D Ration L/D 22.1 21.6 19.5
Shot Size(Theoretical) cm3 193 227 278
Injection Weight(PS) g 176 206 252
Injection Rate g/s 94 105 135
Injection Pressure MPa 205 159 140
Screw Speed rpm 0~220
Clamp tonnage KN 1400
Opening stroke mm 380
Space Between Tie Bars mm 420*420
Max.Mold Height mm 450
Min.Mold Height mm 170
Ejector Stroke mm 120
Ejector Tonnage KN 33
Max.Pump Pressure MPa 16
Pump Motor Power KW 13
Heater power KW 7.2
Machine Dimension(L*W*H) M 4.5*1.2*1.7
Machine weight T 4.2
Oil Tank Capacity L 230



High efficiency, Energy-saving and high precise proportional pressure and flow variable displacement pump system make the out of the hydraulic system matching the required power for entire machine operation without loss of high pressure throttle and overflow energy. As comparedwith constant displacement pump, t saves power by 30%~60%.A motor with same power may be fitted with an oil pump of bigger displacement and thus accelerates the speed of machine.Besides, the low oil temperature will prolong the service life of sealing elements.

Buffer device is used in every mold opening and clamping oil way to ensure steady mold opening and clamping operation without any impact.Besides, differential mold clamping operation is fitted to ensure high production efficiency.

High Energy saving

Under the ideal working state, Power consumption is 40% less than that of variable displacement pump and 70% less than that of fixed displacement pump, save the cost effectively.

High precision

Precise control of low pressure & low flow, repeating precision is less than 0.5%. Weight error of the products is 0.4%~0.7%, with semi-close loop system nearly.

Fast response

With steady capability, servo gearshift dynamical control system has equipped with pressure feedback device with high precision and sensitivity, which forms close-loop precision control, cycle time effectively shortened and improving production efficiency.

Oil temperature rise slowly

The system can restrain arising of oil temperature, so smaller oil cooling system can be used in the machine.

PQ control

Control pressure and flow simply by inputting simulated voltage of pressure & flow into the computer.

Low noise

Different from ordinary fixed pump injection molding machine, servo power-saving injection molding machine is working only when necessary. And working noise is less than LOG-A8 series, will be much quieter for your working area.

Customed Durable Plastic Mould Injection Machine For Drawer Slides 0Customed Durable Plastic Mould Injection Machine For Drawer Slides 1Customed Durable Plastic Mould Injection Machine For Drawer Slides 2Customed Durable Plastic Mould Injection Machine For Drawer Slides 3Customed Durable Plastic Mould Injection Machine For Drawer Slides 4Customed Durable Plastic Mould Injection Machine For Drawer Slides 5
